This product is currently not available.
€129.90 *
Content: 1 Stück

Prices incl. VAT plus shipping costs

 Free Shiping within Germany

Item is backordered – Lead time approx. 2-4 weeks.

  • Order number: PM-6320
  • Hersteller: Holybro
  • Artikelname: 12032
  • EAN: 4250902362201
Description Evaluations 0
Description
Holybro Drone CAN GPS Modul M9N für Pixhawk 6, Cube Orange, uvm. - 12032 neues CAN GPS Modul... more
Close menu
Product information "Holybro Drone CAN GPS Modul M9N für Pixhawk 6, Cube Orange, uvm. - 12032"

Holybro Drone CAN GPS Modul M9N für Pixhawk 6, Cube Orange, uvm. - 12032

neues CAN GPS Modul von Holybro mit Ublox M9N und BMM150 Kompass.

- > die Artikelnummer 12027 ist die Version mit 10 Pin GH Stecker (passend für Pixhawk 4, Pixhawk 5x, Pixhawk 6X, Pixhawk 6C, uvm. am GPS 1 Port). Für den Cube (Pixhawk 2.1) bieten wir die Artikelnummer 12029 an, diese verfügt dann über einen 6 Pin GH Stecker.



Lieferumfang

- M9N  CAN GPS Module *1
- ‘X’ type folding pedestal mount *1
- Carbon rod 70mm & 140mm *1


Ausführliche Informationen und Technische Daten:



Descriptions?

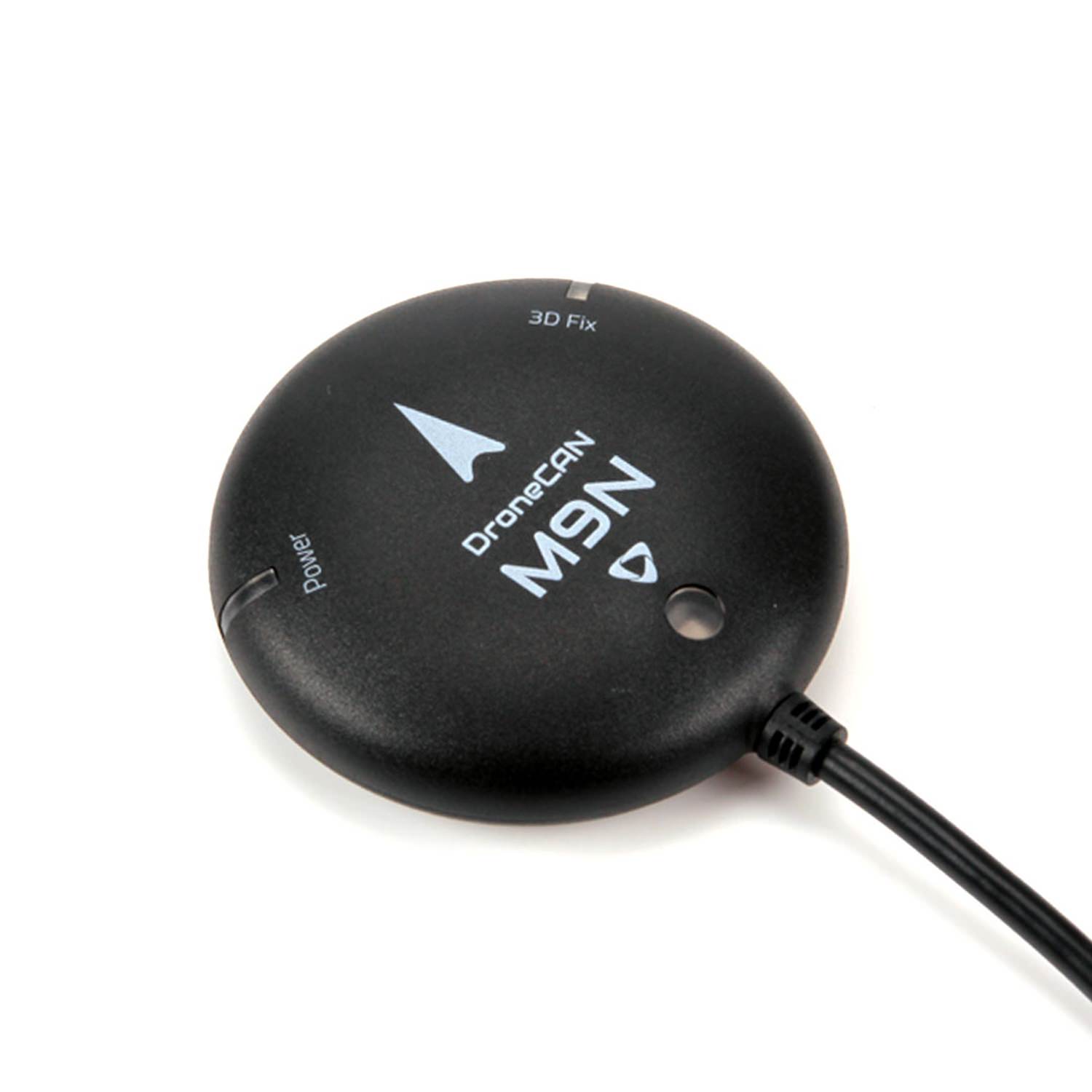

The Holybro DroneCAN GPS has an UBLOX M8N or M9N module, BMM150 compass, tri-colored LED indicator. It has the STM32G4 Processor and adopted the DroneCAN protocol for communication, making it more reliable and better in dealing with electromagnetic interference compare to serial connection. It does not occupy any serial port of the flight controller, and different CAN devices can be connected to the same CAN bus via a CAN splitter board.


Specification:

  DroneCAN M9N
GNSS Receiver Ublox NEO M9N
Number of Concurrent GNSS Up to 4 GNSS (GPS, Galileo, GLONASS, BeiDou)
Processor STM32G4 (170MHz, 512K FLASH)
Compass BMM150
Frequency Band GPS: L1C/A GLONASS: L10F Beidou: B1I Galileo: E1B/C
GNSS Augmentation System SBAS: WAAS, EGNOS, MSAS, QZSS
Navigation Update 5Hz Default(10Hz MAX)
Accuracy 2.5m
Speed Accuracy 0.05 m/s
Max # of Satellites 22+
Communication Protocol DroneCAN @ 1 Mbit/s
Supports Autopilot FW PX4, Ardupilot
Port Type GHR-04V-S
Antenna 25 x 25 x 4 mm ceramic patch antenna
Power consumption Less than 200mA @ 5V
Voltage 4.7-5.2V
Operating Temperature -40~80C
Size Diameter: 54mm Thickness: 14.5mm
Weight 36g
Cable Length 26cm
Other Notes - LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance
- Low noise 3.3V regulator
