Compact Design, Powerful Performance

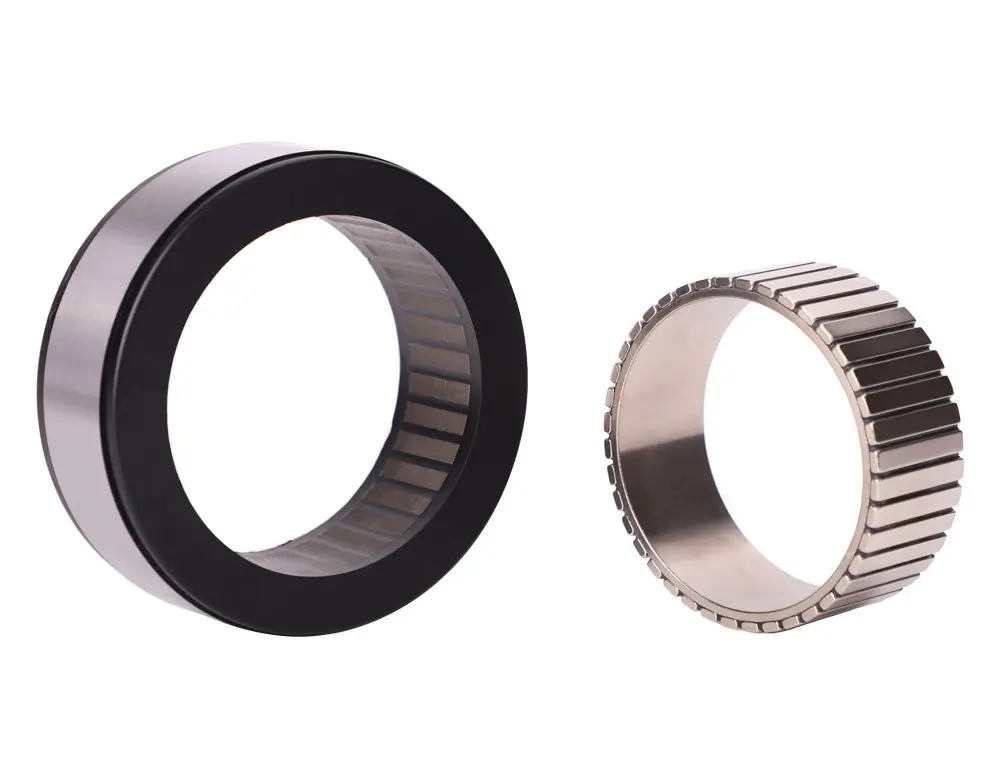

RI-PH SERIES FRAMELESS
INRUNNER TORQUE
MOTOR
LIGHTWEIGHT DESIGN
HIGHLY COMPATIBLE
The core yoke is over 30% thinner than the previous RI series maintaining magnetic density
and
fitting compact installations in embedded devices and collaboorative robots
HIGH-TEMPERATURE RESISTANT
CONTINUOUSLY
EFFICIENT
Using potting technoloogy,cooling performance is significantly enhanced It performs
excellently
below 85°C and can continuously maintain performance even at winding
temperature exceeding 150°C
*In high-temperature environments,RI115-PH significantly reduces torque decay
Torque/N·m
Temperature/°C
SUPERIOR DESIGN
ENHANCED PERFORMANCE
The electroomagnetic design is meticulously crated
resulting in a 25% increase in torque and power density
STABLE OUTPUT
LONG-LASTING EFFICIENCY
Proovides stable and efficient power output across multiple torque ranges
Efficiency
Torque
INTEGRATED SENSORS
FLEXIBLE CONTROL
Integrated with Hall sensors and temperature sensors for precise control of
angle and
temperature,enhancing flexibility and performance
