Holybro Pixhawk Jetson Baseboard Bundle - Pixhawk 6X Pro / Jetson Orin Nano 4GB (mit Wi-Fi & SSD & C

Description

The Holybro Pixhawk Jetson Baseboard is based on the Pixhawk Bus open source specification and the NVIDIA Jetson Orin NX/Nano Carrier Board. The Pixhawk Bus (PAB) Form Factor enables this to be used with any PAB flight controller, such as the Pixhawk 6X

Feature

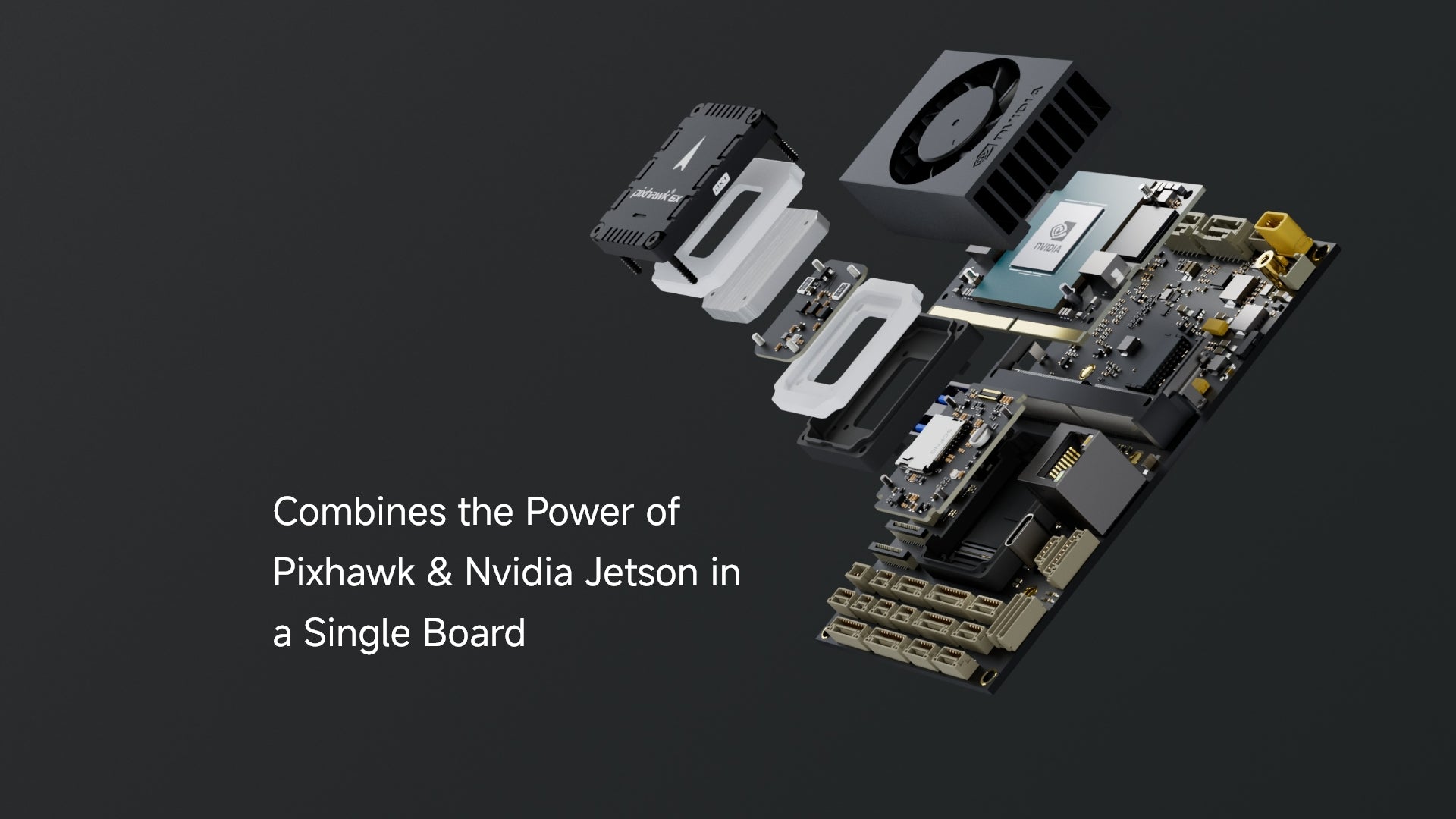

• Combines the power of Pixhawk & Nvidia Jetson in a single board

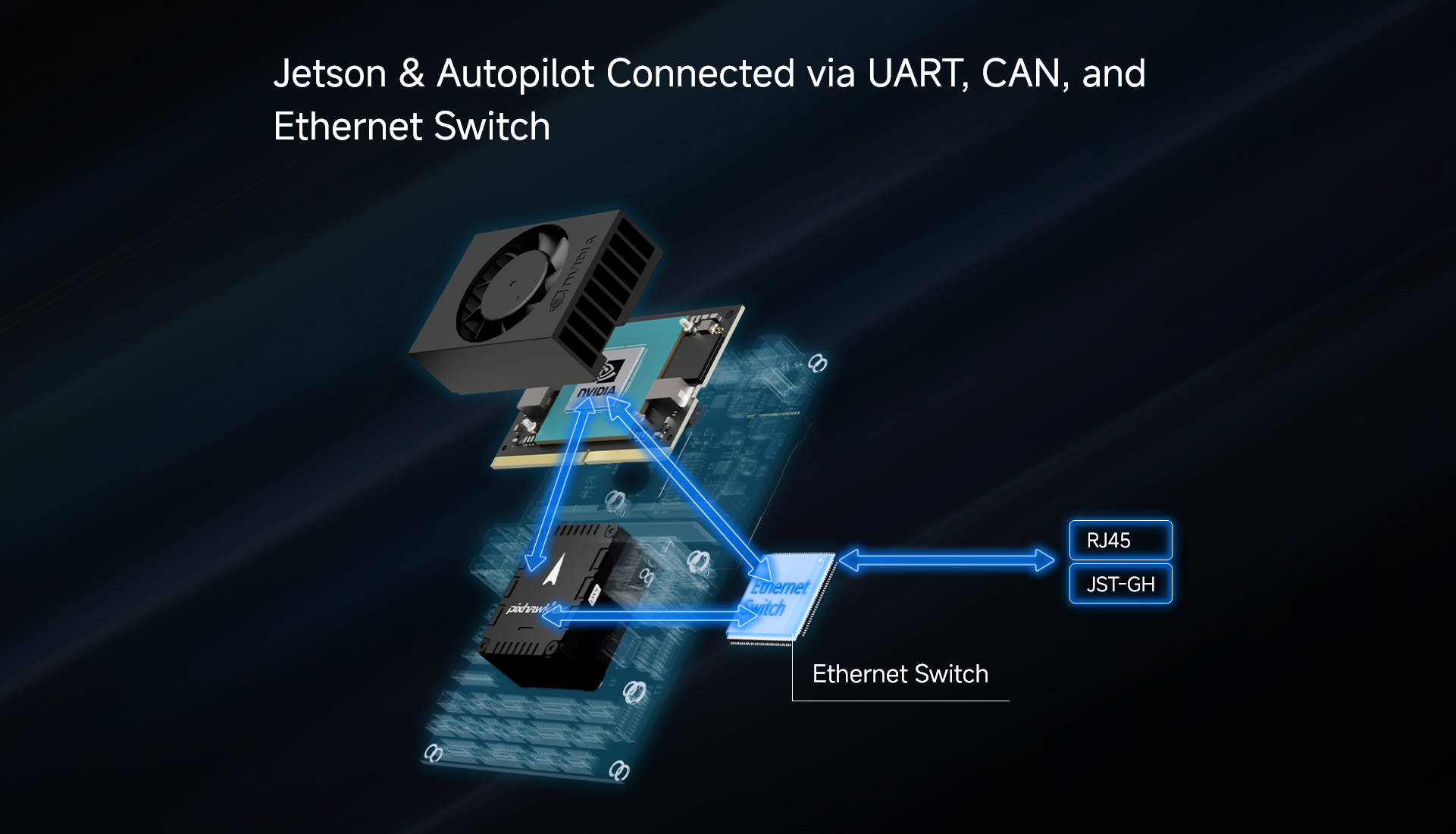

• Nvidia Jetson & Pixhawk connected via UART, CAN, and ethernet switch

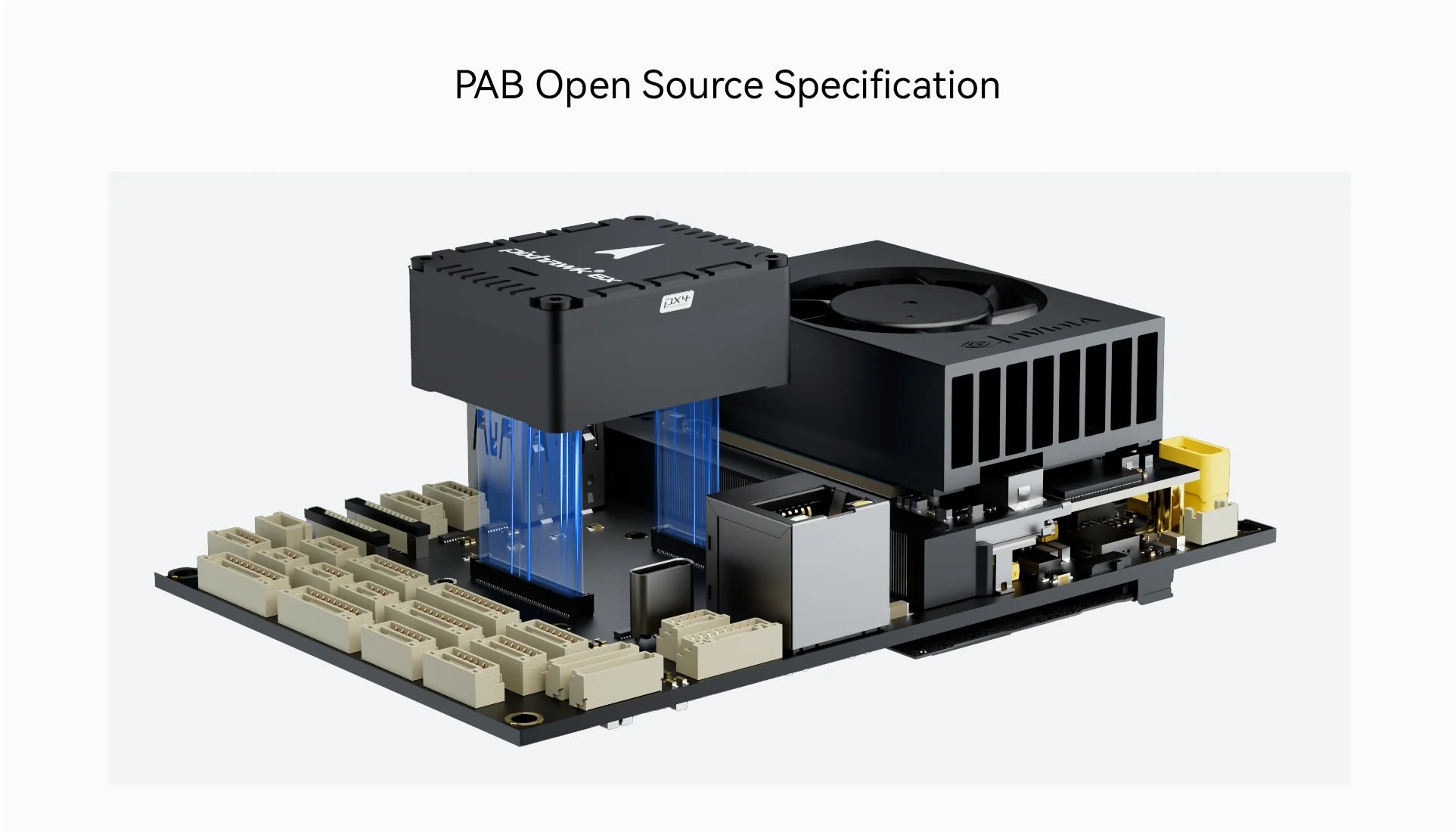

• Pixhawk Bus (PAB) Form Factor

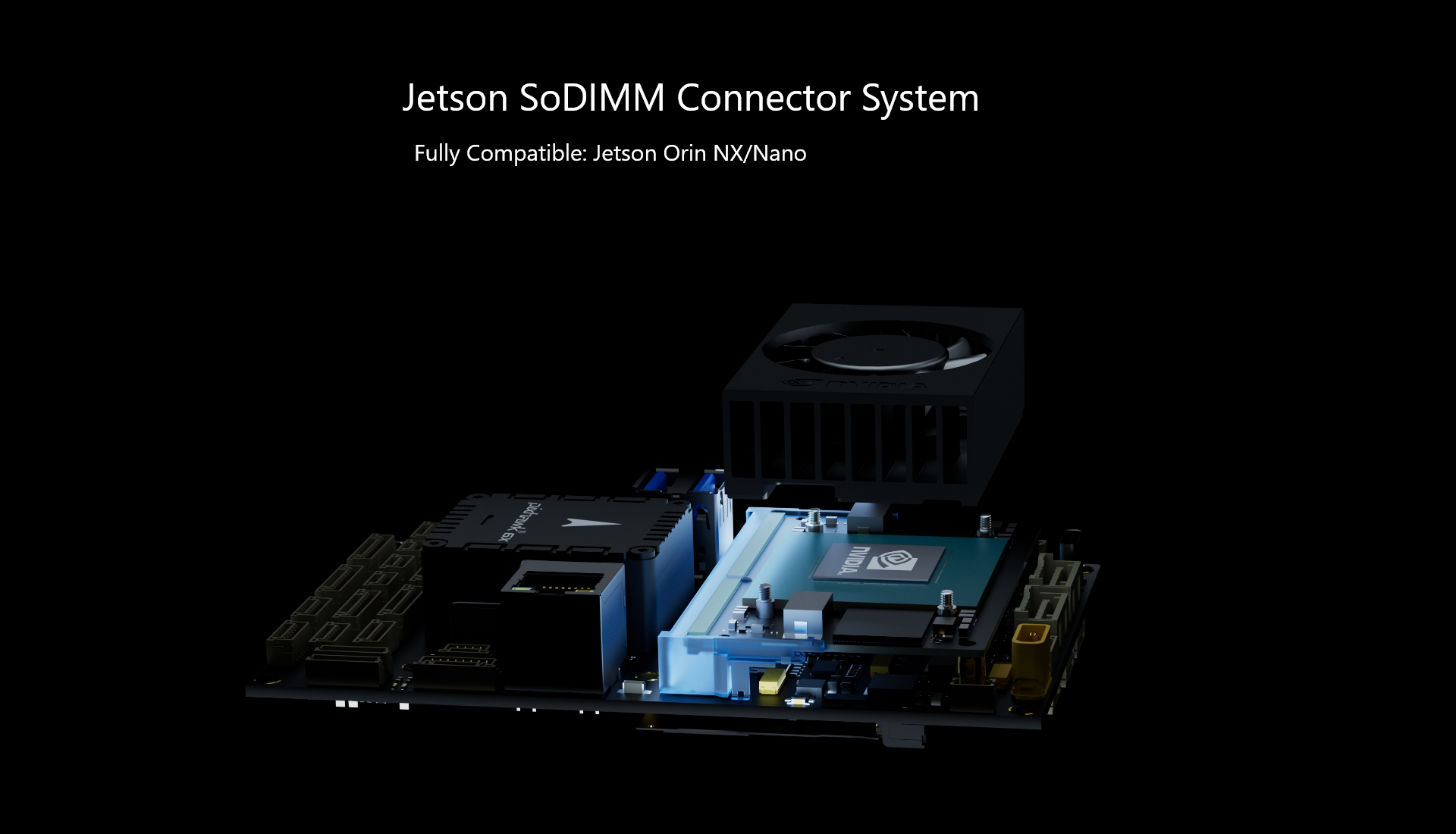

• Compatible with Jetson Orin NX & Orin Nano

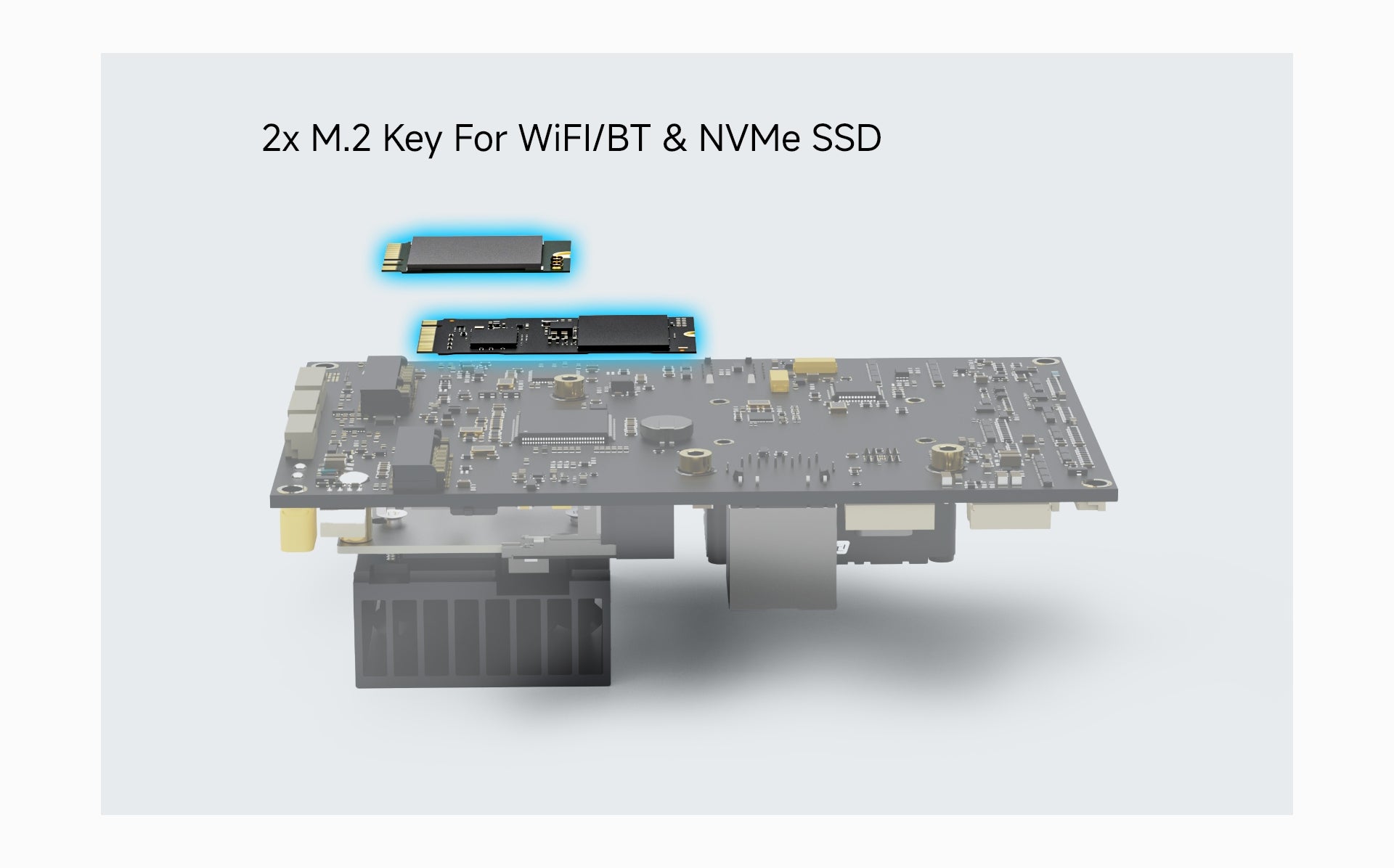

• 2x M.2 key for WiFI/Bluetooth & NVMe SSD

Pixhawk 6X (ICM-45686)

Processors & Sensors

• FMU Processor: STM32H753
  • 32-bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
• IO Processor: STM32F103
  • 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
• On-board sensors (Shipping Currently, Rev8)
  • Accel/Gyro: 3x ICM-45686 (with BalancedGyro™ Technology)
  • Barometer: ICP20100 & BMP388
  • Mag: BMM150

Baseboard Port & Connection

Jetson Connectors

• 2x Gigabit Ethernet port
  • Connected to both Jetson & Pixhawk via Ethernet switch (RTL8367S)

    • Ethernet Switch powered by circuit as the Pixhawk
  • 8-pin JST-GH
  • RJ45
• 2x MIPI CSI Camera Inputs
  • 4 Lanes each
  • 22-Pin Raspberry Pi Cam FFC
• 2x USB 3.0 Host Port
  • USB A
  • 1.5A Current Limit
• 2x USB 2.0 Host Port
  • 5-Pin JST-GH
  • 1.0A Current Limit
• USB 2.0 for Programming/debugging
  • USB-C
• Key M 2242/2280 for NVMe SSD
  • PCIEx4
• Key E 2230 for WiFi/BT
  • PCIEx2
  • USB
  • UART
  • I2S
• Mini HDMI Out
• 4x GPIO
  • 6-pin JST-GH
• CAN Port
  • Connected to Pixhawk's CAN2 (4 Pin JST-GH)
• SPI Port
  • 7-Pin JST-GH
• I2C Port
  • 4-Pin JST-GH
• I2S Port
  • 7-Pin JST-GH
• 2x UART Port
  • 1 for debug
  • 1 connected to Pixhawk's telem2
• Fan Power Port
• IIM42652 IMU
• Input Power
  • XT30 Connector
  • Voltage Rating: 7-21V (3S-4S)
  • Separate input power circuits from the Pixhawk to ensure flight safety
  • Holybro UBEC 12A (3-14S) can be used for applications above 4S
  • Note: The Pixhawk Jetson Baseboard onboard BEC is only rated for 7- 21V (3S- 4S). Using the external "UBEC 12A (3-14S)" can provide redundancy and easier replacement in case of BEC failure.
• Power Requirements
  • 8V/3A Minimum
  • Depends on Usage and Peripherals

Pixhawk Connectors

• Pixhawk Pixhawk Bus Interface
  • 100 Pin Hirose DF40
  • 50 Pin Hirose DF40
• Redundant Digital Power Module Inputs
  • I2C Power Monitor Support
  • 2x – 6 Pin Molex CLIK-Mate
  • Power Path Selector w/ Overvoltage Protection
• Voltage Ratings:
  • Max input voltage: 6V
  • USB Power Input: 4.75~5.25V
• Full GPS Plus Safety Switch Port
  • 10-Pin JST-GH
• Secondary (GPS2) Port
  • 6-pin JST-GH
• 2x CAN Ports
  • 4 Pin JST-GH
• 3x Telemetry Ports with Flow Control
  • 2x 6-Pin JST-GH
  • 1 is connected to Jetson's UART1 Port
• 16 PWM Outputs
  • 2x 10-Pin JST-GH
• UART4 & I2C Port
  • 6-Pin JST-GH
• 2x Gigabit Ethernet port
  • Connected to both Jetson & Pixhawk via Ethernet switch (RTL8367S)
  • 8-pin JST-GH
  • RJ45
• AD & IO
  • 8-Pin JST-GH
• USB 2.0
  • USB-C
  • 4-pin JST-GH
• DSM Input
  • 3-pin JST-ZH 1.5mm Pitch
• RC in
  • PPM/SBUS
  • 5-pin JST-GH
• SPI Port
  • External Sensor Bus (SPI5
  • 11-Pin JST-GH
• 2x Debug Port
  • 1 for FMU
  • 1 for IO
  • 10-Pin JST-SH
• Dimensions (Without Jetson and Flight Controller Module)
  • 126x80x38mm
• Weight
  • With Jetson, Heatsink, Flight Controller, M.2 SSD, M.2 Wi-Fi Module 203.2g

UBEC-12A Specifications

• Input voltage: 3~14S (XT30)
• Output voltage: 6.0V/7.2V/8.0V/9.2V (recommend 7.2V if supplying power to Jetson Board)
• Output Current

  • Continuous: 12A
  • Burst: 24A
• Size: 48x33.6x16.3 mm
• Weight: 47.8g

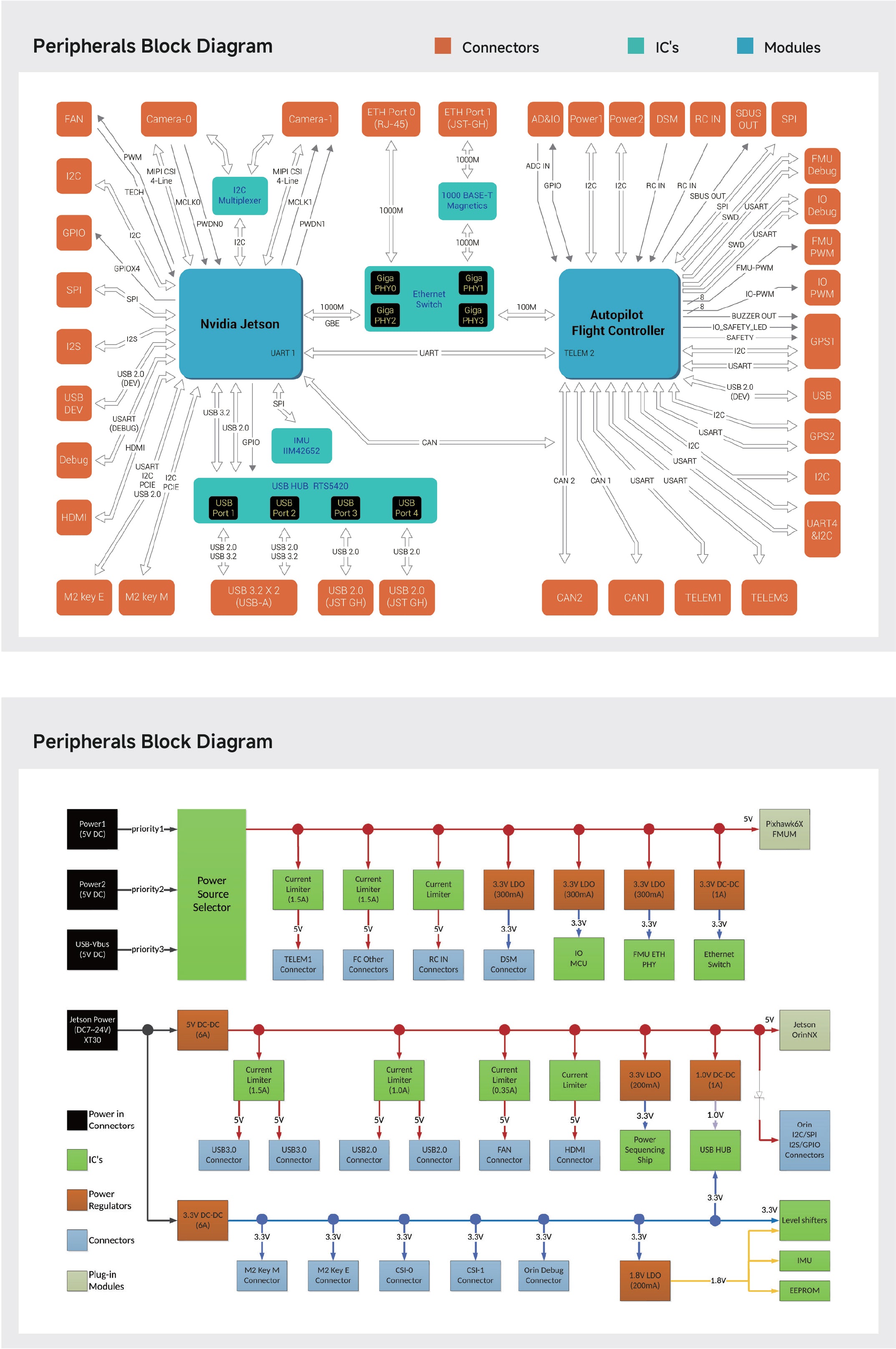

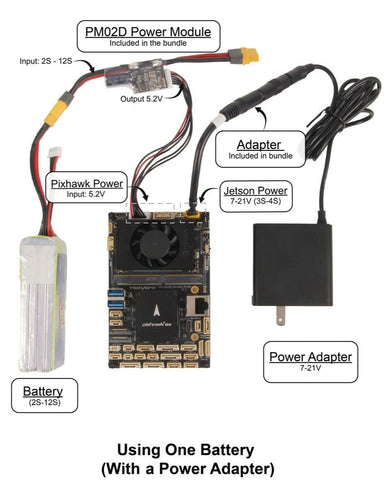

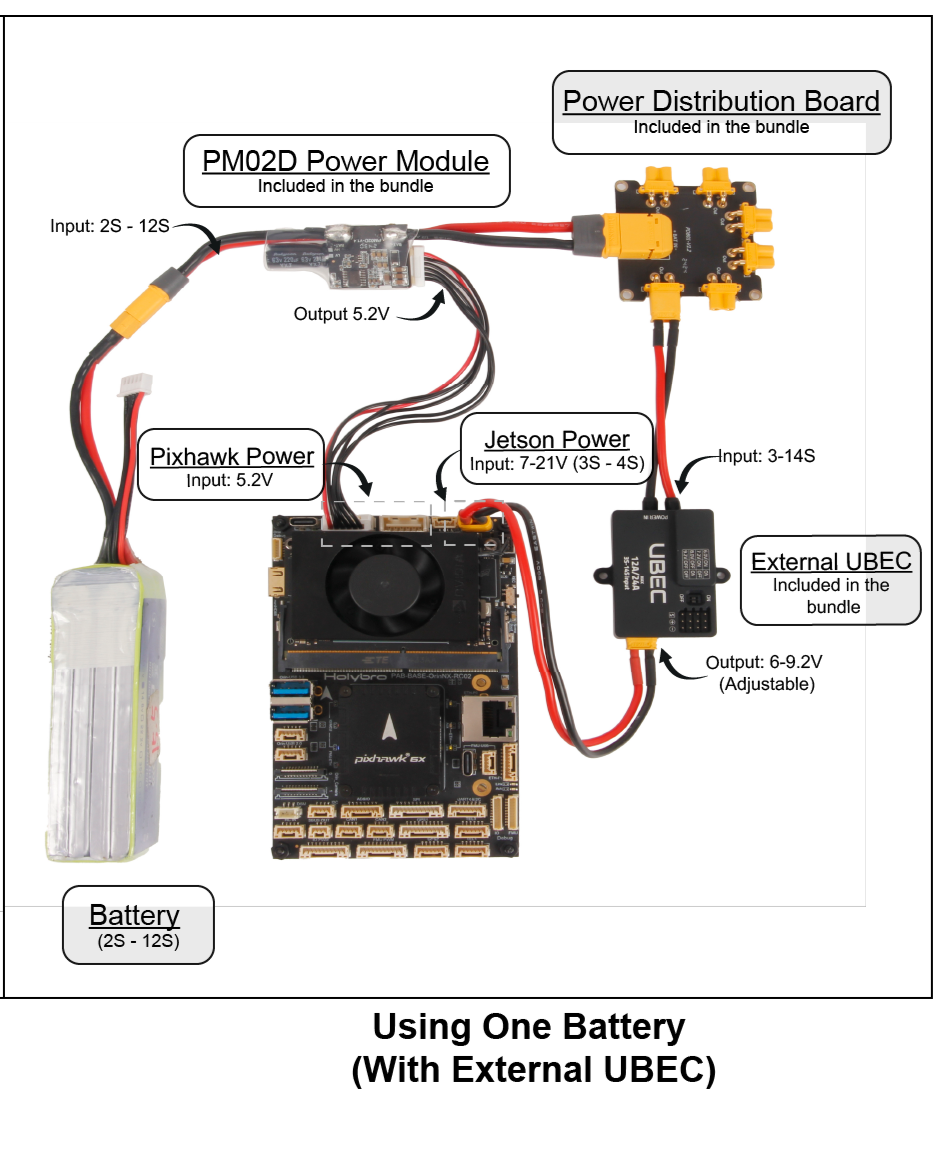

Reference Wiring Diagram

Warning: Please avoid powering the Jetson module directly from a battery.

Reference Links

• Full Pinout
• Dimension & Weight
• Flashing Guide
• CAN Setup
• CSI Camera Setup
• MAVLINK Bridge
• Other Reference Link
• CAD File Download

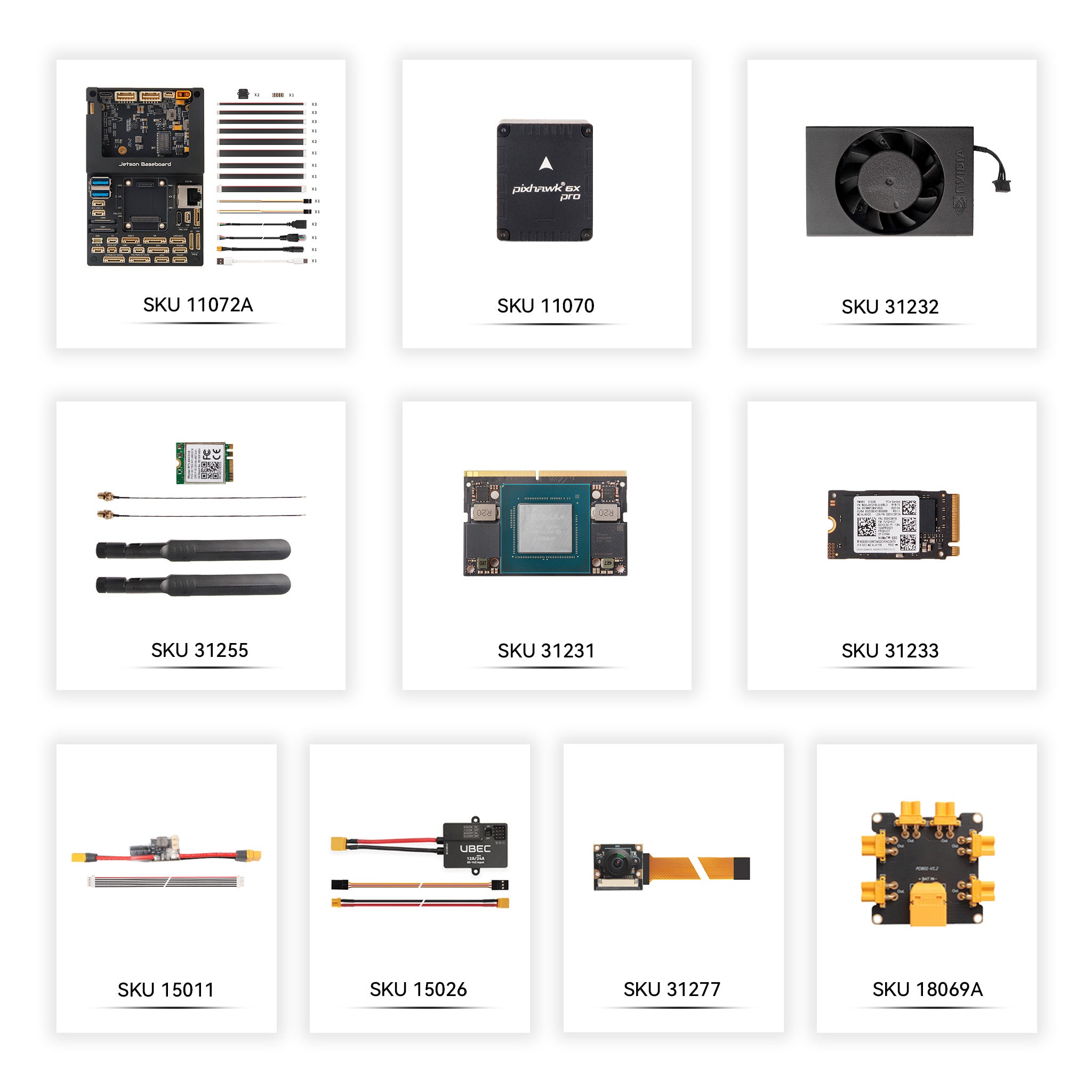

Package Includes

Complete Bundle (basboard with case)

• • Pixhawk 6X (ICM-45686) Flight Controller Module
  • Pixhawk Jetson Orin Baseboard
  • Nvidia Orin NX (16GB RAM)/Nvidia Orin Nano (4GB RAM)
• w/ Heat Sink & Fan
• Includes the following:
  • SSD: Samsung PM9B1 PCIe 4.0 NVMe 512GB
  • Wi-Fi & Bluetooth Module: Intel 8265NGW AC Dual Band and Realtek RTL8B22CE
  • Camera: IMX219-200
• PM02D Power Module
• UBEC 12A (3-14S)
• PDB Board
• Cable Set

Complete Bundle (baseboard without case)

• Pixhawk 6X ProFlight Controller Module
• Pixhawk Jetson Orin Baseboard(w/o Case)/Pixhawk Jetson Orin Baseboard
• Nvidia Orin NX (16GB RAM)/Nvidia Orin Nano (4GB RAM) w/ Heat Sink & Fan
• Includes the following:

  • SSD: Samsung PM9B1 PCIe 4.0 NVMe 512GB
  • Wi-Fi & Bluetooth Module: Intel 8265NGW AC Dual Band or Realtek RTL8B22CE
  • Camera: IMX219-200
• PM02D Power Module
• UBEC 12A (3-14S)
• PDB Board
• Cable Set

Baseboard Only

• Pixhawk Jetson Orin Baseboard(with or without Case)
• Cable Set

Jetson Orin Default Login

• ID?holybro
• PW?123
