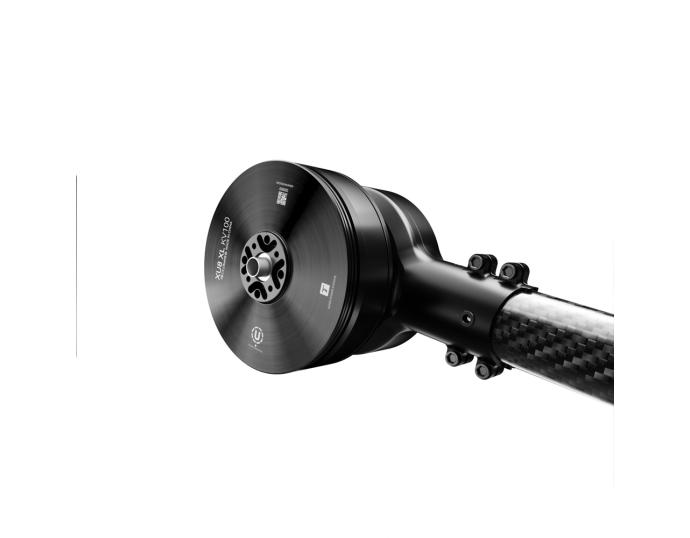

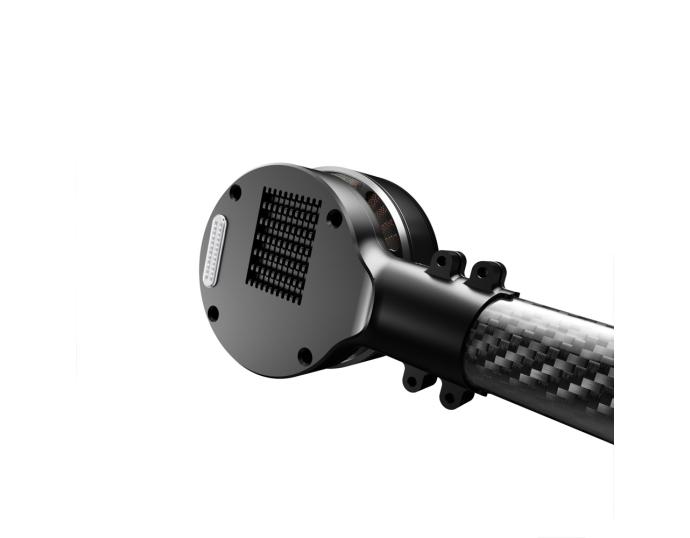

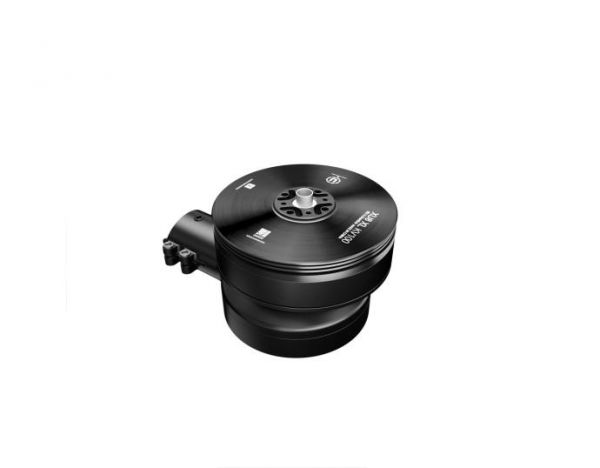

T-Motor XU8XL-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S
€539.90 *
€566.90 * (4.76% Saved)
Prices incl. VAT plus shipping costs
Free Shiping within Germany
Item is backordered – Lead time approx. 2-4 weeks.
- Order number: PM-7362
- Hersteller: T-Motor
- Artikelname: XU8XL-X-KV100-12S
- EAN: 4250902367145
Specification
Model
XU8XL-X KV100
Lead Cable Length... more
Product information "T-Motor XU8XL-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S"
Specification
| Model | XU8XL-X KV100 | Lead Cable Length | 610mm |
| Dimension | 134.9*87.8*72.8mm | Arm Set Weight(Incl. Cable) | 615g |
| Configuration | 36N42P | Shaft Diameter | 8mm |
| Idle Current (24V) | 1.0A | Rated Voltage (LiPo) | 12S |
| Internal Resistance | 85mΩ | ESC Recommendation | ALPHA 60A 12S V1.2 |
| Peak Current (180s) | 40A | Propeller Recommendation | MF2815/MF3016 |
| Max. Power (180s) | 1600W |
Test Data
| Type | Voltage (V) | Propeller | Throttle | Thrust (gf) | Torque (N·m) | Current (A) | RPM | Power (W) | Efficiency (gf/W) | Operating Temperature (°C) |
| XU8XL-X KV100 (ALPHA 60A 12S V1.2) | 48V | T-MOTOR MF28*15 | 40% | 2023 | 0.71 | 3.25 | 1656 | 156 | 12.99 | 48 (Ambient Temperature: 25) |
| 45% | 2521 | 0.87 | 4.36 | 1839 | 209 | 12.08 | ||||
| 50% | 3057 | 1.05 | 5.69 | 2021 | 273 | 11.22 | ||||
| 55% | 3657 | 1.25 | 7.30 | 2205 | 349 | 10.47 | ||||
| 60% | 4280 | 1.46 | 9.13 | 23817 | 437 | 9.80 | ||||
| 65% | 4947 | 1.68 | 11.22 | 2555 | 536 | 9.23 | ||||
| 70% | 5625 | 1.91 | 13.60 | 2726 | 649 | 8.67 | ||||
| 75% | 6352 | 2.15 | 16.26 | 2893 | 775 | 8.20 | ||||
| 80% | 7094 | 2.4 | 19.32 | 3060 | 919 | 7.72 | ||||
| 90% | 8625 | 2.92 | 26.09 | 3370 | 1236 | 6.98 | ||||
| 100% | 9869 | 3.34 | 32.25 | 3600 | 1523 | 6.48 | ||||
| XU8XL-X KV100 (ALPHA 60A 12S V1.2) | 48V | T-MOTOR MF30*16 | 40% | 2342 | 0.85 | 3.76 | 1640 | 180 | 12.99 | 52 (Ambient Temperature: 25) |
| 45% | 2904 | 1.05 | 5.06 | 1819 | 242 | 11.98 | ||||
| 50% | 3529 | 1.26 | 6.68 | 1998 | 320 | 11.04 | ||||
| 55% | 4198 | 1.50 | 8.56 | 2173 | 409 | 10.26 | ||||
| 60% | 4919 | 1.74 | 10.72 | 2345 | 512 | 9.61 | ||||
| 65% | 5686 | 2.00 | 13.19 | 2512 | 629 | 9.04 | ||||
| 70% | 6467 | 2.27 | 15.98 | 2675 | 761 | 8.50 | ||||
| 75% | 7277 | 2.55 | 19.09 | 2837 | 907 | 8.02 | ||||
| 80% | 8110 | 2.84 | 22.53 | 2992 | 1069 | 7.59 | ||||
| 90% | 9747 | 3.41 | 30.12 | 3281 | 1423 | 6.85 | ||||
| 100% | 11063 | 3.85 | 36.78 | 3491 | 1731 | 6.39 | ||||
| Note: Motor temperature is motor surface temperature @75% throttle running 10min. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) | ||||||||||
Product Details
Dimensional Drawing
