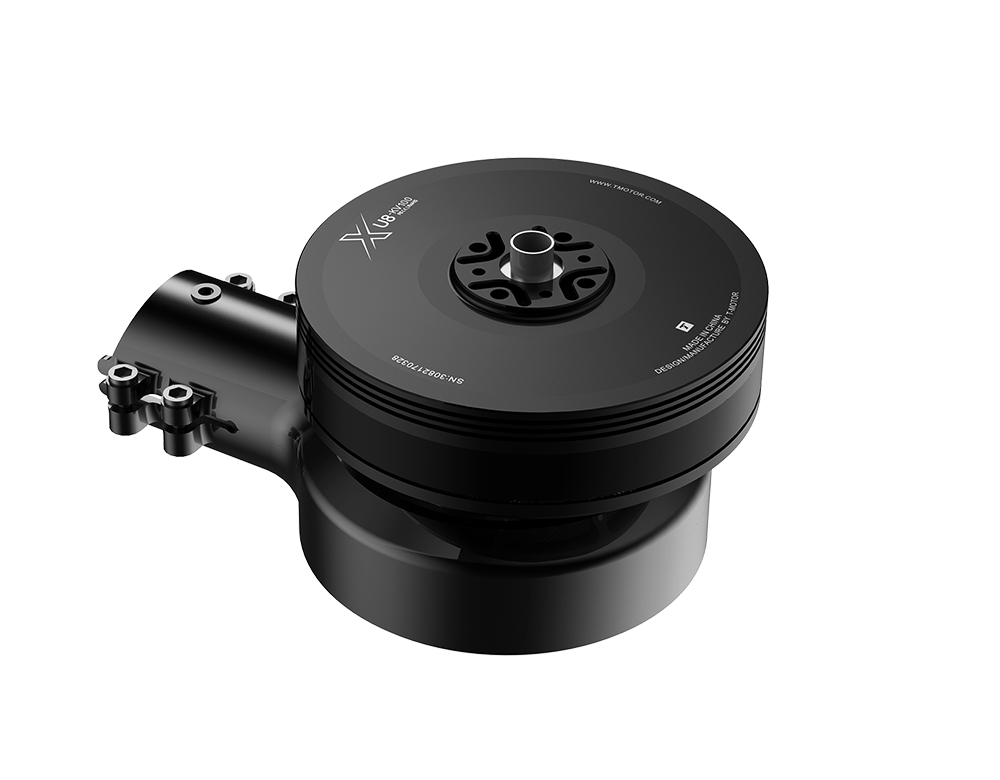

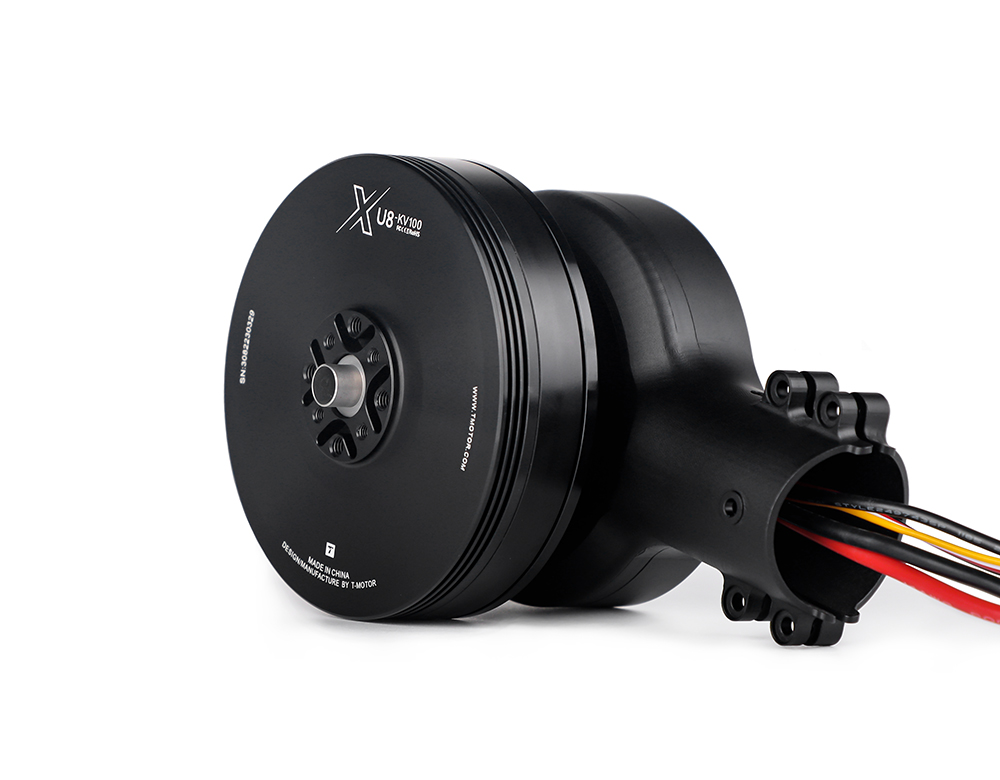

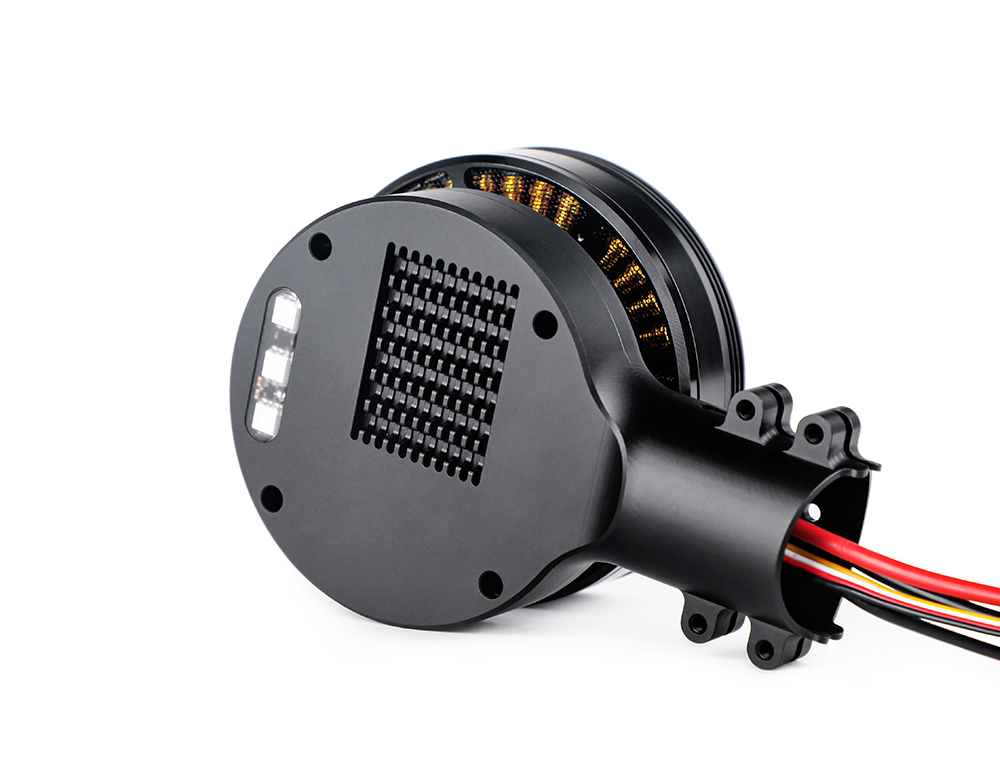

T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S

T-Motor
Preview: T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S Preview: T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S Preview: T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S Preview: T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S
T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S
T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S
T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S
T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S

€547.40 * €569.90 * (3.95% Saved)

Prices incl. VAT plus shipping costs

 Free Shiping within Germany

Item is backordered – Lead time approx. 2-4 weeks.

  • Order number: PM-7354
  • Hersteller: T-Motor
  • Artikelname: XU8-X-KV85-12S
  • EAN: 4250902367077
Description Evaluations 0
Description
Specification Model XU8-X KV85 Lead Cable Length 600mm... more
Close menu
Product information "T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S"

Specification

Model XU8-X KV85 Lead Cable Length 600mm
Dimension 134.6*87.1*70.5mm Arm Set Weight(Incl. Cable) 490g
Configuration 36N42P Shaft Diameter 8mm
Idle Current (24V) 0.8A Rated Voltage (Lipo) 12S
Internal Resistance 225±5mΩ Ingress ProtectionLevel IP45
Peak Current (180s) 19.1A ESCRecommendation ALPHA 60 12S V1.2
Max. Power (180s) 910W PropellerRecommendation MF2815

Test Data

Type Voltage
(V)		 Propeller Throttle Thrust
(g)		 Torque
(N*m)		 Current
(A)		 RPM Power
(W)		 Efficiency
(g/W)		 Operating
Temperature
(°C)
XU8-X KV85 12S(48V) T-MOTOR
G28*9.2" CF		 40% 1465 0.45 1.80 1584 86 16.96 /
42% 1572 0.48 2.00 1631 96 16.38
44% 1717 0.53 2.30 1692 110 15.55
46% 1852 0.58 2.60 1748 125 14.84
48% 1997 0.6 2.90 1810 139 14.35
50% 2140 0.66 3.20 1872 154 13.93
52% 2256 0.68 3.40 1928 163 13.82
54% 2378 0.71 3.70 1988 178 13.39
56% 2528 0.77 4.10 2047 197 12.85
58% 2757 0.84 4.60 2124 221 12.49
60% 2957 0.9 5.10 2190 245 12.08
62% 3027 0.91 5.30 2232 254 11.9
64% 3171 0.95 5.70 2287 274 11.59
66% 3307 1 6.20 2349 298 11.11
68% 3448 1.04 6.60 2384 317 10.88
70% 3662 1.08 7.10 2439 341 10.75
75% 4043 1.17 8.20 2570 394 10.27
80% 4468 1.28 9.50 2680 456 9.8
90% 5248 1.47 12.20 2917 586 8.96
100% 6352 1.8 16.50 3200 792 8.02
XU8-X KV85 12S(48V) T-MOTOR
G29*9.5" CF		 40% 1696 0.53 2.10 1547 101 16.83 /
42% 1829 0.59 2.40 1607 115 15.88
44% 1959 0.63 2.70 1654 130 15.12
46% 2119 0.68 3.00 1720 144 14.72
48% 2248 0.69 3.20 1767 154 14.64
50% 2412 0.78 3.70 1837 178 13.58
52% 2610 0.81 4.00 1906 192 13.59
54% 2759 0.86 4.40 1958 211 13.06
56% 2885 0.89 4.70 2001 226 12.79
58% 3193 1.01 5.50 2100 264 12.09
60% 3285 1.03 5.80 2139 278 11.8
62% 3429 1.07 6.20 2184 298 11.52
64% 3561 1.09 6.50 2236 312 11.41
66% 3740 1.15 7.10 2285 341 10.97
68% 3953 1.28 7.70 2332 370 10.7
70% 4094 1.26 8.20 2394 394 10.4
75% 4517 1.39 9.50 2506 456 9.91
80% 4961 1.49 11.00 2626 528 9.4
90% 5875 1.69 14.00 2858 672 8.74
100% 7130 2.09 19.10 3104 917 7.78
Note: Motor temperature is motor surface temperature @100% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Product Details









Dimensional Drawing

Drawing

Related links to "T-Motor XU8-X Arm Set Integrated Propulsion KV85 Alpha 60A 12S"

Hersteller gemäß (GPSR (EU)2023/988):

T-Motor, 24F, Bd.B, Twintowers, No. 3399 Ziyang Ave., Nanchang, Jiangxi, P.R. China. 330096 https://uav-en.tmotor.com/

Inverkehrbringer:

Premium-Modellbau Würch GmbH, Geschäftsführer: Steffen Würch, Torenstrasse 9, 88709 Meersburg, Deutschland, Tel: 07046 38795100, www.premium-modellbau.de
