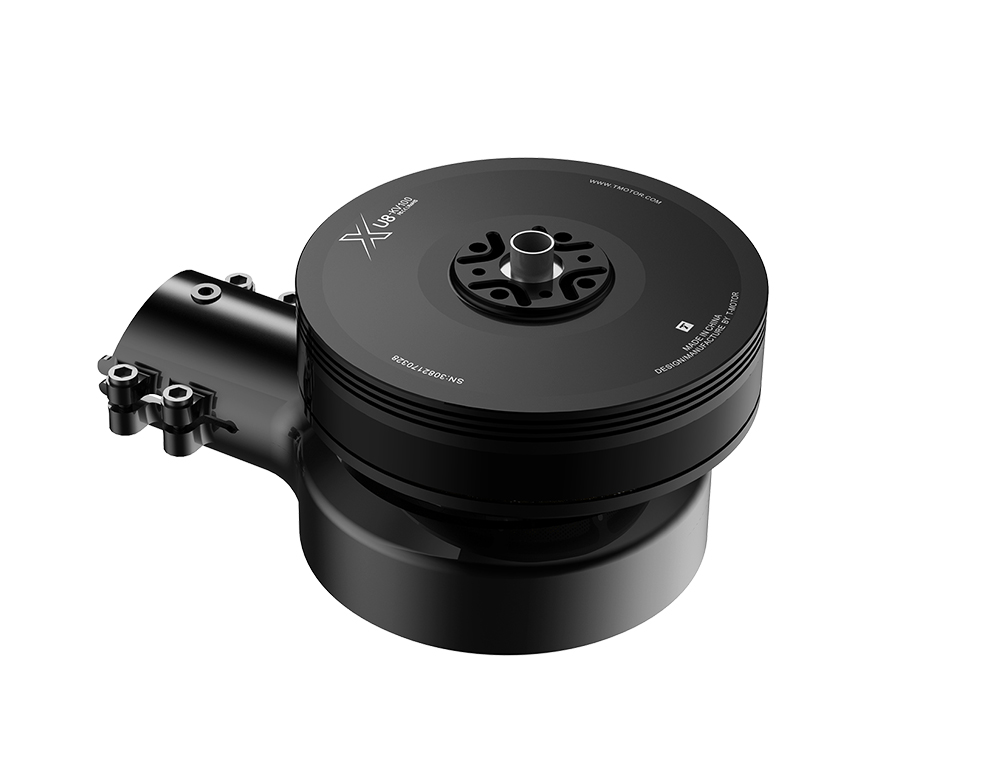

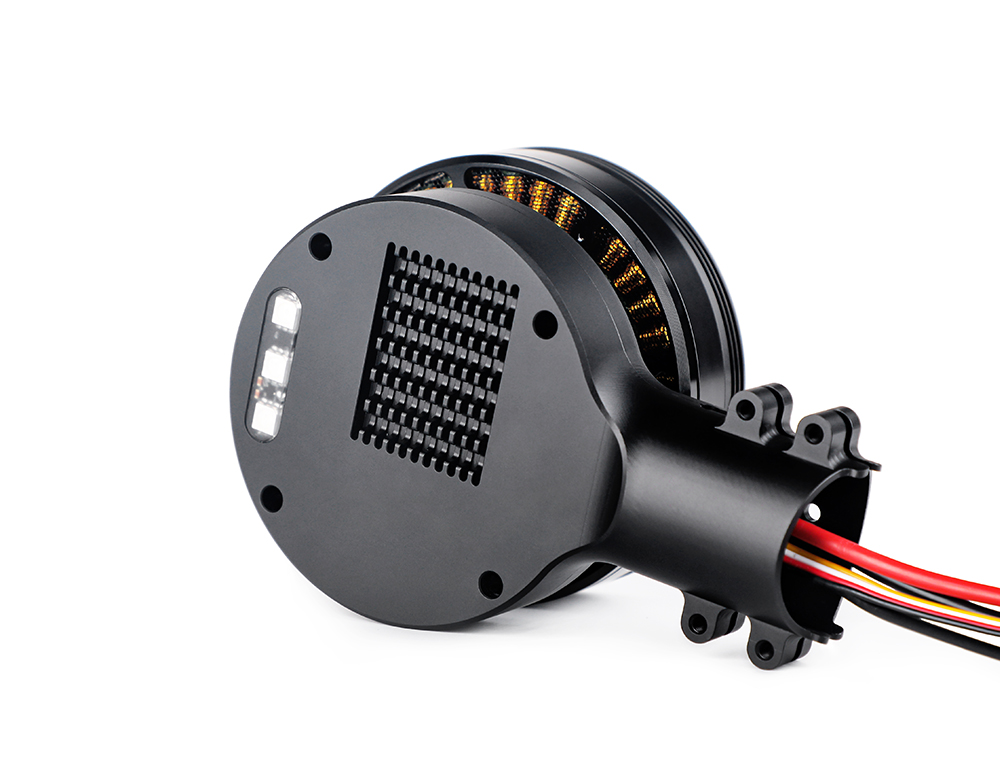

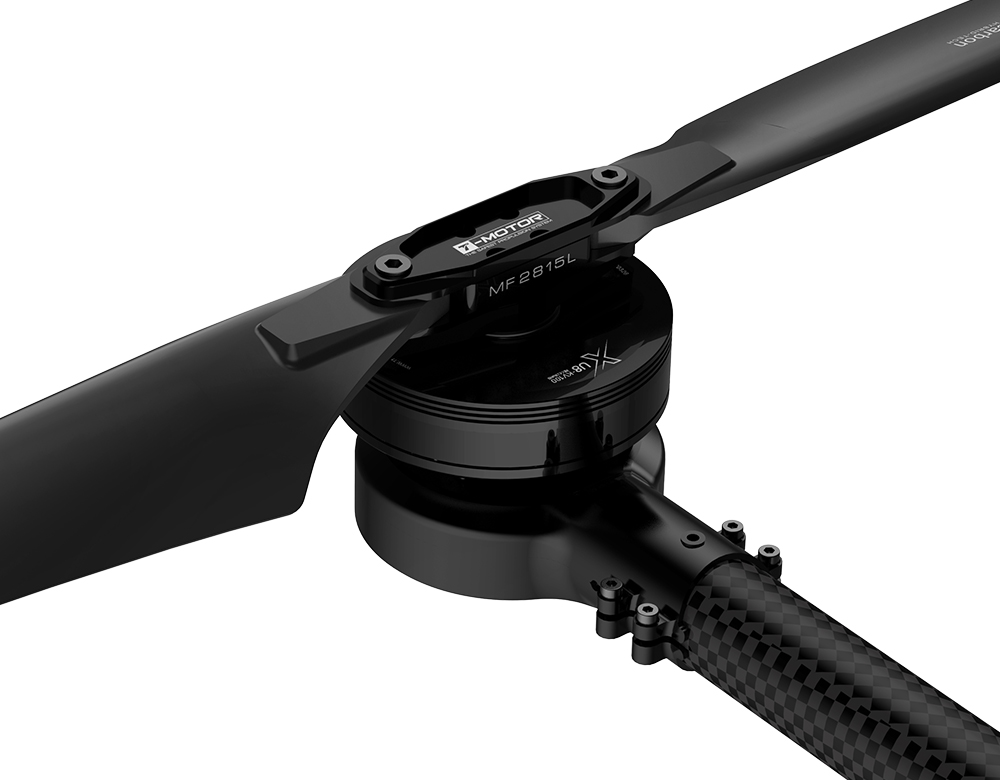

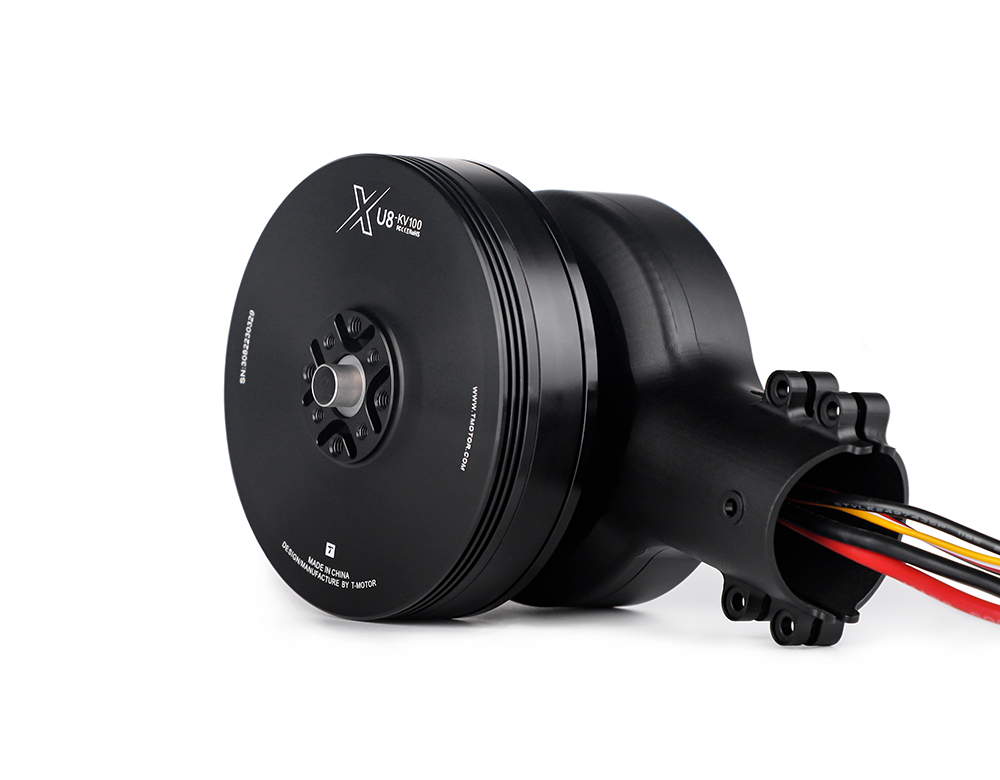

T-Motor XU8-X Arm Set Integrated Propulsion KV190 Alpha 60A 6S + MF2815 Propeller
€546.21 *
€569.90 * (4.16% Saved)
Prices incl. VAT plus shipping costs
Free Shiping within Germany
Item is backordered – Lead time approx. 2-4 weeks.
- Order number: PM-7361
- Hersteller: T-Motor
- Artikelname: XU8-X-KV190-6S-MF2815
- EAN: 4250902367138
Specification
Model
XU8-X KV190
Lead Cable Length
600mm... more
Product information "T-Motor XU8-X Arm Set Integrated Propulsion KV190 Alpha 60A 6S + MF2815 Propeller"
Specification
| Model | XU8-X KV190 | Lead Cable Length | 600mm |
| Dimension | 134.6*87.1*70.5mm | Arm Set Weight(Incl. Cable) | 490g |
| Configuration | 36N42P | Shaft Diameter | 8mm |
| Idle Current (24V) | 1.8A | Rated Voltage (Lipo) | 6S |
| Internal Resistance | 48±5mΩ | Ingress ProtectionLevel | IP45 |
| Peak Current (180s) | 43.7A | ESCRecommendation | ALPHA 60 LV |
| Max. Power (180s) | 1040W | PropellerRecommendation | MF2815 |
Test Data
| Type | Voltage (V) | Propeller | Throttle | Thrust (g) | Torque (N*m) | Current (A) | RPM | Power (W) | Efficiency (g/W) | Operating Temperature (°C) |
| XU8-X KV190 | 6S(24V) | T-MOTOR G28*9.2" CF | 40% | 1662 | 0.54 | 4.80 | 1632 | 115 | 14.43 | / |
| 42% | 1806 | 0.58 | 5.40 | 1709 | 130 | 13.94 | ||||
| 44% | 1951 | 0.62 | 6.00 | 1745 | 144 | 13.55 | ||||
| 46% | 2134 | 0.68 | 6.80 | 1828 | 163 | 13.08 | ||||
| 48% | 2254 | 0.69 | 7.20 | 1892 | 173 | 13.04 | ||||
| 50% | 2401 | 0.75 | 8.10 | 1953 | 194 | 12.35 | ||||
| 52% | 2566 | 0.8 | 8.90 | 2022 | 214 | 12.01 | ||||
| 54% | 2774 | 0.87 | 10.00 | 2093 | 240 | 11.56 | ||||
| 56% | 2892 | 0.88 | 10.50 | 2144 | 252 | 11.48 | ||||
| 58% | 3081 | 0.94 | 11.60 | 2210 | 278 | 11.07 | ||||
| 60% | 3208 | 0.97 | 12.40 | 2252 | 298 | 10.78 | ||||
| 62% | 3389 | 1.03 | 13.50 | 2312 | 324 | 10.46 | ||||
| 64% | 3502 | 1.04 | 14.10 | 2358 | 338 | 10.35 | ||||
| 66% | 3623 | 1.08 | 15.00 | 2394 | 360 | 10.06 | ||||
| 68% | 3801 | 1.1 | 15.80 | 2441 | 379 | 10.02 | ||||
| 70% | 3934 | 1.16 | 17.00 | 2497 | 408 | 9.64 | ||||
| 75% | 4376 | 1.25 | 19.60 | 2620 | 470 | 9.3 | ||||
| 80% | 4816 | 1.36 | 22.60 | 2776 | 542 | 8.88 | ||||
| 90% | 5563 | 1.56 | 29.00 | 2972 | 696 | 7.99 | ||||
| 100% | 6761 | 1.88 | 38.70 | 3248 | 929 | 7.28 | ||||
| XU8-X KV190 | 6S(24V) | T-MOTOR G29*9.5" CF | 40% | 1879 | 0.64 | 5.60 | 1616 | 134 | 13.98 | / |
| 42% | 2035 | 0.68 | 6.20 | 1662 | 149 | 13.68 | ||||
| 44% | 2173 | 0.73 | 6.90 | 1722 | 166 | 13.12 | ||||
| 46% | 2328 | 0.75 | 7.50 | 1775 | 180 | 12.93 | ||||
| 48% | 2486 | 0.8 | 8.30 | 1828 | 199 | 12.48 | ||||
| 50% | 2627 | 0.85 | 9.10 | 1899 | 218 | 12.03 | ||||
| 52% | 2812 | 0.89 | 9.90 | 1955 | 238 | 11.84 | ||||
| 54% | 2961 | 0.93 | 10.70 | 2008 | 257 | 11.53 | ||||
| 56% | 3195 | 1.01 | 12.00 | 2073 | 288 | 11.09 | ||||
| 58% | 3344 | 1.06 | 13.00 | 2129 | 312 | 10.72 | ||||
| 60% | 3502 | 1.13 | 14.20 | 2174 | 341 | 10.28 | ||||
| 62% | 3669 | 1.13 | 14.70 | 2223 | 353 | 10.4 | ||||
| 64% | 3833 | 1.21 | 16.20 | 2286 | 389 | 9.86 | ||||
| 66% | 4005 | 1.24 | 17.10 | 2348 | 410 | 9.76 | ||||
| 68% | 4214 | 1.3 | 18.40 | 2400 | 442 | 9.54 | ||||
| 70% | 4365 | 1.34 | 19.50 | 2432 | 468 | 9.33 | ||||
| 75% | 4782 | 1.44 | 22.50 | 2541 | 540 | 8.86 | ||||
| 80% | 5184 | 1.53 | 25.40 | 2662 | 610 | 8.5 | ||||
| 90% | 6026 | 1.73 | 32.20 | 2866 | 773 | 7.8 | ||||
| 100% | 7334 | 2.13 | 43.70 | 3125 | 1049 | 6.99 | ||||
| Note: Motor temperature is motor surface temperature @100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) | ||||||||||
Product Details
Dimensional Drawing
