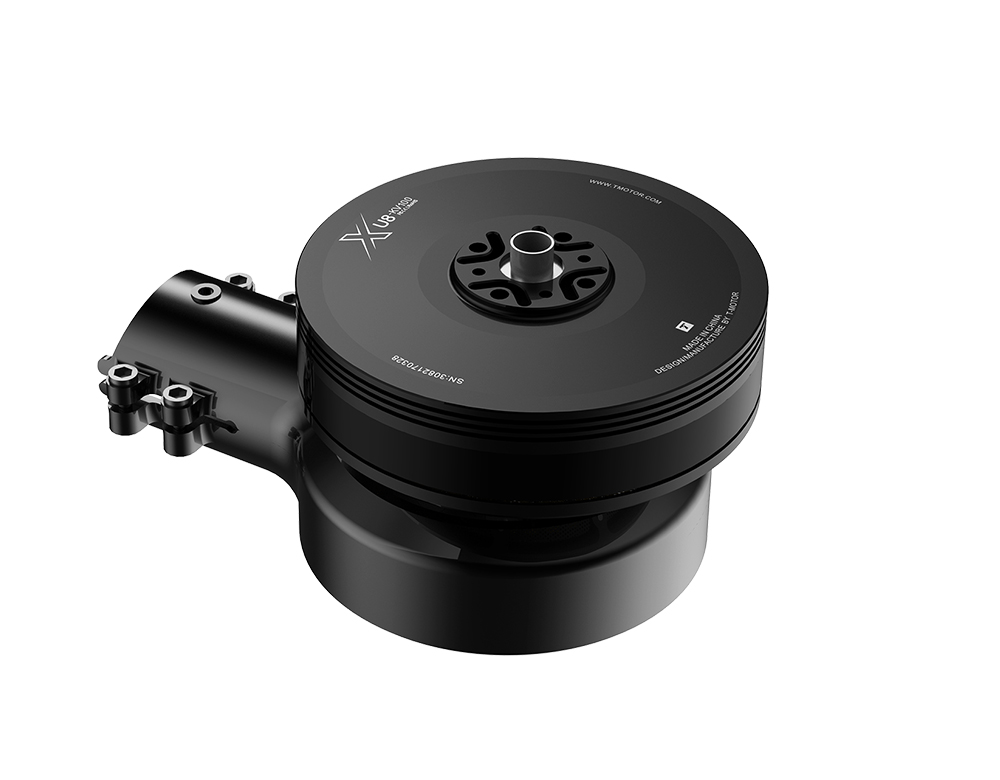

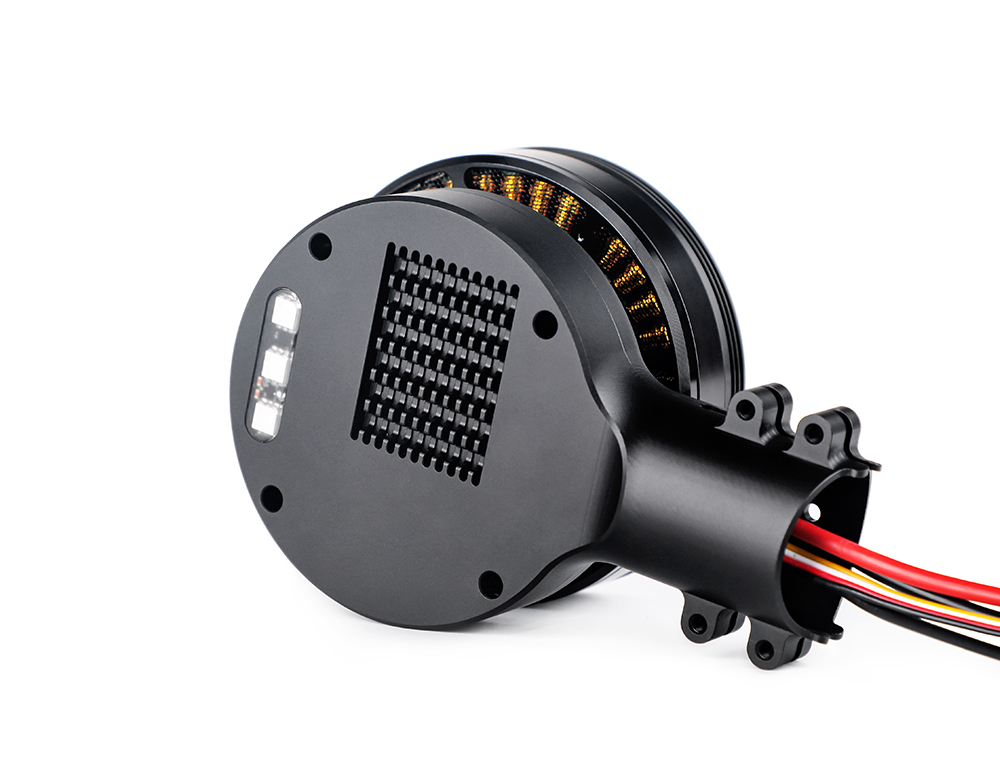

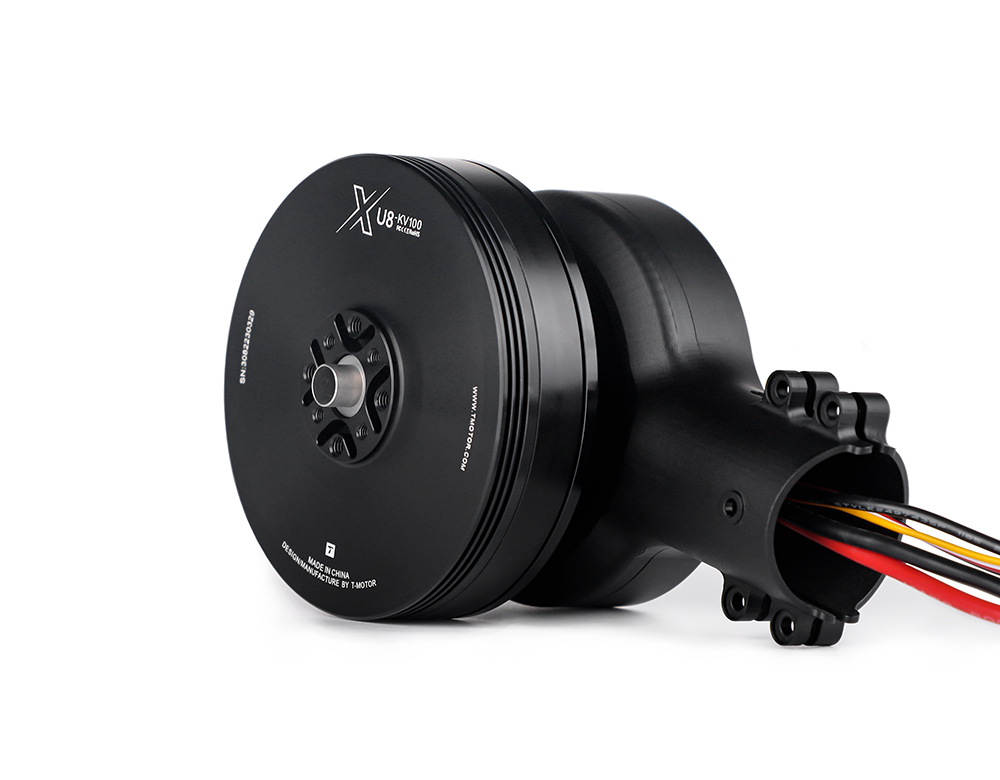

T-Motor XU8-X Arm Set Integrated Propulsion KV150 Alpha 60A 6S
€499.90 *
€524.90 * (4.76% Saved)
Prices incl. VAT plus shipping costs
Free Shiping within Germany
Item is backordered – Lead time approx. 2-4 weeks.
- Order number: PM-7356
- Hersteller: T-Motor
- Artikelname: XU8-X-KV150-6S
- EAN: 4250902367084
Specification
Model
XU8-X KV150
Lead Cable Length
600mm... more
Product information "T-Motor XU8-X Arm Set Integrated Propulsion KV150 Alpha 60A 6S"
Specification
| Model | XU8-X KV150 | Lead Cable Length | 600mm |
| Dimension | 134.6*87.1*70.5mm | Arm Set Weight(Incl. Cable) | 485g |
| Configuration | 36N42P | Shaft Diameter | 8mm |
| Idle Current (24V) | 1.4A | Rated Voltage (Lipo) | 6S |
| Internal Resistance | 85±5mΩ | Ingress ProtectionLevel | IP45 |
| Peak Current (180s) | 29.7A | ESCRecommendation | ALPHA 60 LV |
| Max. Power (180s) | 710W/1270W | PropellerRecommendation | MF2815 |
Test Data
| Type | Voltage (V) | Propeller | Throttle | Thrust (g) | Torque (N*m) | Current (A) | RPM | Power (W) | Efficiency (g/W) | Operating Temperature (°C) |
| XU8-X KV150 | 6S(24V) | T-MOTOR G28*9.2" CF | 40% | 1176 | 0.4 | 2.90 | 1383 | 70 | 16.9 | / |
| 42% | 1237 | 0.41 | 3.10 | 1444 | 74 | 16.63 | ||||
| 44% | 1353 | 0.44 | 3.50 | 1497 | 84 | 16.11 | ||||
| 46% | 1465 | 0.48 | 3.90 | 1545 | 94 | 15.65 | ||||
| 48% | 1561 | 0.51 | 4.30 | 1587 | 103 | 15.13 | ||||
| 50% | 1648 | 0.52 | 4.60 | 1640 | 110 | 14.93 | ||||
| 52% | 1785 | 0.57 | 5.20 | 1708 | 125 | 14.3 | ||||
| 54% | 1905 | 0.6 | 5.60 | 1750 | 134 | 14.17 | ||||
| 56% | 2006 | 0.63 | 6.10 | 1811 | 146 | 13.7 | ||||
| 58% | 2153 | 0.67 | 6.70 | 1856 | 161 | 13.39 | ||||
| 60% | 2227 | 0.68 | 7.00 | 1899 | 168 | 13.26 | ||||
| 62% | 2334 | 0.71 | 7.50 | 1938 | 180 | 12.97 | ||||
| 64% | 2450 | 0.74 | 8.10 | 1984 | 194 | 12.6 | ||||
| 66% | 2549 | 0.77 | 8.60 | 2023 | 206 | 12.35 | ||||
| 68% | 2726 | 0.85 | 9.60 | 2082 | 230 | 11.83 | ||||
| 70% | 2877 | 0.87 | 10.30 | 2135 | 247 | 11.64 | ||||
| 75% | 3149 | 0.94 | 11.80 | 2238 | 283 | 11.12 | ||||
| 80% | 3479 | 1.02 | 13.60 | 2352 | 326 | 10.66 | ||||
| 90% | 4058 | 1.16 | 17.30 | 2557 | 415 | 9.77 | ||||
| 100% | 4879 | 1.4 | 23.00 | 2798 | 552 | 8.84 | ||||
| XU8-X KV150 | 6S(24V) | T-MOTOR G29*9.5" CF | 40% | 1296 | 0.45 | 3.20 | 1363 | 77 | 16.88 | / |
| 42% | 1416 | 0.48 | 3.60 | 1419 | 86 | 16.39 | ||||
| 44% | 1509 | 0.5 | 3.90 | 1454 | 94 | 16.12 | ||||
| 46% | 1654 | 0.55 | 4.40 | 1501 | 106 | 15.66 | ||||
| 48% | 1728 | 0.56 | 4.70 | 1554 | 113 | 15.32 | ||||
| 50% | 1833 | 0.6 | 5.20 | 1610 | 125 | 14.69 | ||||
| 52% | 2006 | 0.65 | 5.80 | 1652 | 139 | 14.41 | ||||
| 54% | 2128 | 0.68 | 6.30 | 1698 | 151 | 14.07 | ||||
| 56% | 2243 | 0.72 | 6.90 | 1756 | 166 | 13.54 | ||||
| 58% | 2357 | 0.77 | 7.60 | 1804 | 182 | 12.92 | ||||
| 60% | 2486 | 0.79 | 8.00 | 1849 | 192 | 12.95 | ||||
| 62% | 2612 | 0.82 | 8.60 | 1884 | 206 | 12.66 | ||||
| 64% | 2707 | 0.84 | 9.10 | 1941 | 218 | 12.39 | ||||
| 66% | 2862 | 0.88 | 9.80 | 1989 | 235 | 12.17 | ||||
| 68% | 2995 | 0.92 | 10.50 | 2020 | 252 | 11.88 | ||||
| 70% | 3142 | 0.98 | 11.50 | 2071 | 276 | 11.38 | ||||
| 75% | 3469 | 1.06 | 13.20 | 2188 | 317 | 10.95 | ||||
| 80% | 3774 | 1.15 | 15.20 | 2284 | 365 | 10.35 | ||||
| 90% | 4536 | 1.34 | 19.80 | 2484 | 475 | 9.55 | ||||
| 100% | 5378 | 1.61 | 26.20 | 2712 | 629 | 8.55 | ||||
| XU8-X KV150 | 6S(24V) | T-MOTOR G30*10.5" CF | 40% | 1551 | 0.54 | 3.80 | 1321 | 91 | 17.01 | / |
| 42% | 1684 | 0.59 | 4.30 | 1374 | 103 | 16.32 | ||||
| 44% | 1766 | 0.6 | 4.60 | 1418 | 110 | 16 | ||||
| 46% | 1850 | 0.63 | 5.00 | 1457 | 120 | 15.42 | ||||
| 48% | 1991 | 0.69 | 5.70 | 1513 | 137 | 14.55 | ||||
| 50% | 2132 | 0.73 | 6.20 | 1560 | 149 | 14.33 | ||||
| 52% | 2256 | 0.76 | 6.70 | 1603 | 161 | 14.03 | ||||
| 54% | 2420 | 0.81 | 7.40 | 1663 | 178 | 13.63 | ||||
| 56% | 2536 | 0.84 | 7.90 | 1699 | 190 | 13.38 | ||||
| 58% | 2676 | 0.87 | 8.50 | 1743 | 204 | 13.12 | ||||
| 60% | 2816 | 0.91 | 9.20 | 1793 | 221 | 12.75 | ||||
| 62% | 2923 | 0.94 | 9.80 | 1838 | 235 | 12.43 | ||||
| 64% | 3097 | 1 | 10.70 | 1886 | 257 | 12.06 | ||||
| 66% | 3229 | 1.05 | 11.50 | 1924 | 276 | 11.7 | ||||
| 68% | 3334 | 1.07 | 12.10 | 1967 | 290 | 11.48 | ||||
| 70% | 3475 | 1.11 | 12.90 | 2007 | 310 | 11.22 | ||||
| 75% | 3917 | 1.24 | 15.40 | 2120 | 370 | 10.6 | ||||
| 80% | 4237 | 1.33 | 17.50 | 2204 | 420 | 10.09 | ||||
| 90% | 5020 | 1.55 | 22.80 | 2383 | 547 | 9.17 | ||||
| 100% | 5912 | 1.83 | 29.70 | 2573 | 713 | 8.29 | ||||
| Note: Motor temperature is motor surface temperature @100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.) | ||||||||||
Product Details
Dimensional Drawing
