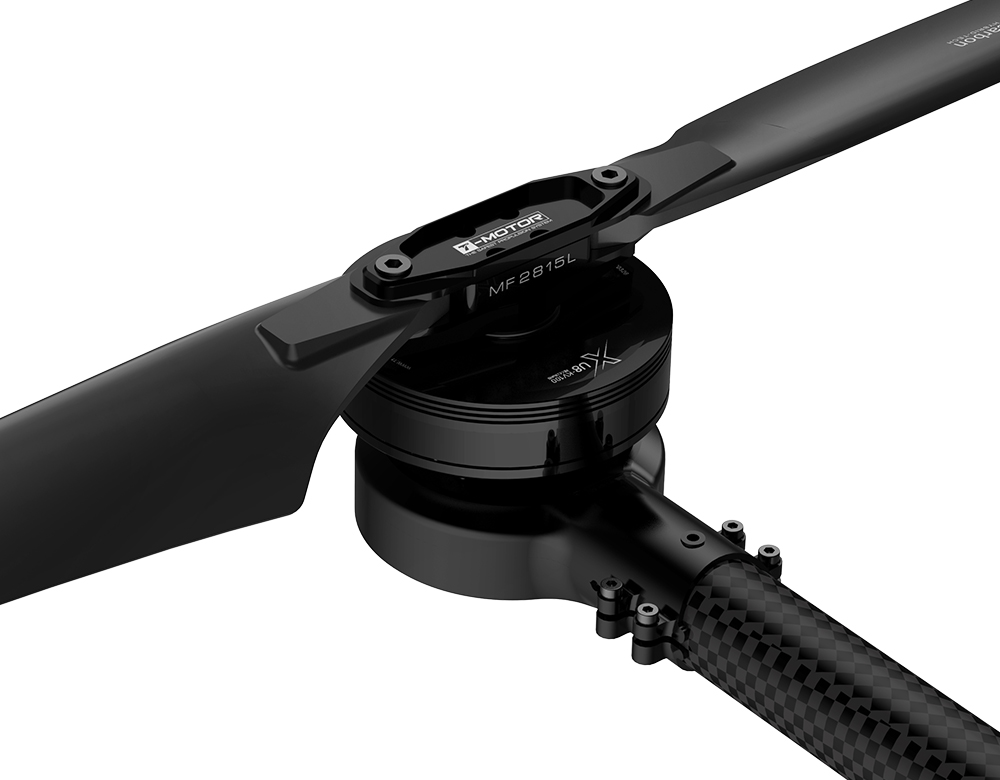

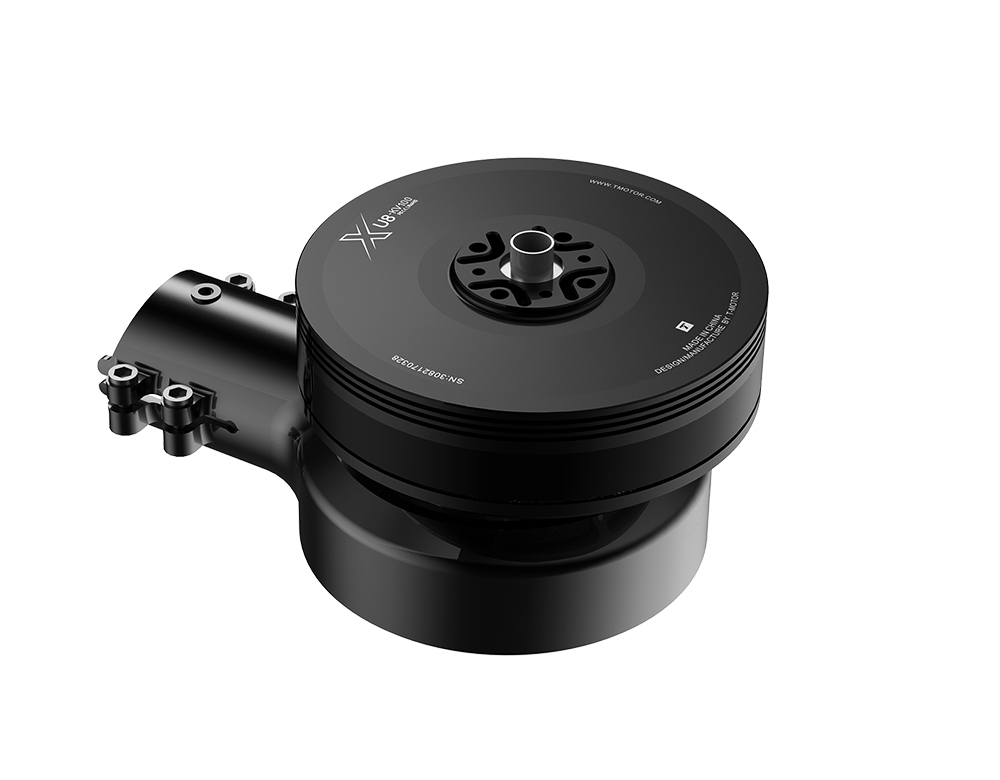

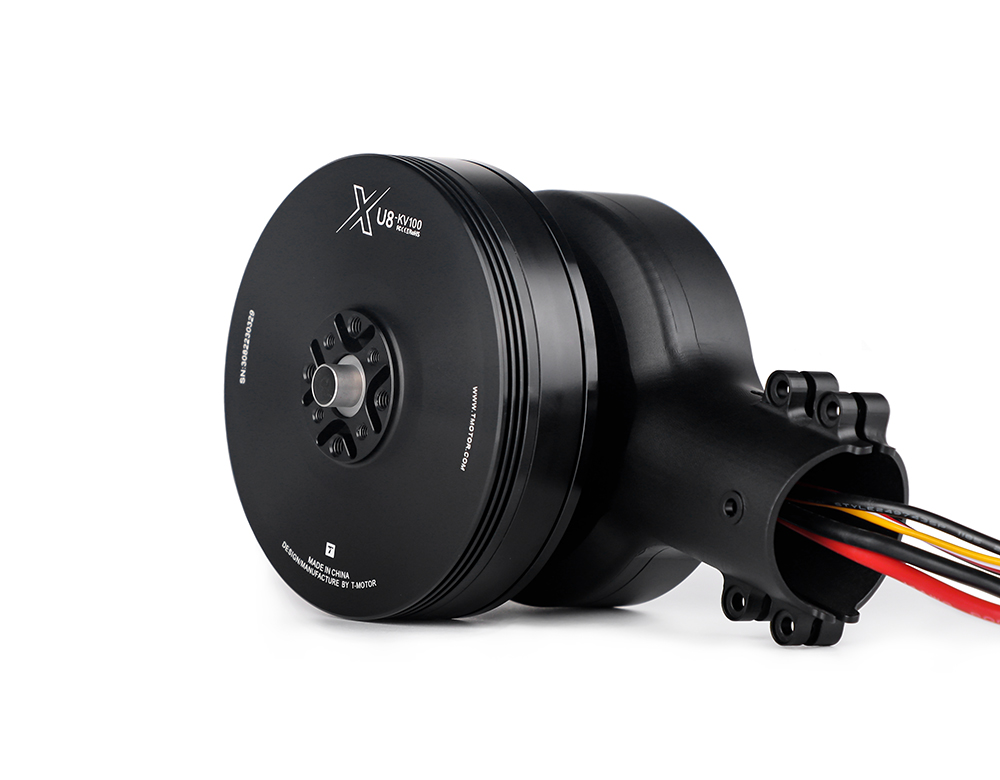

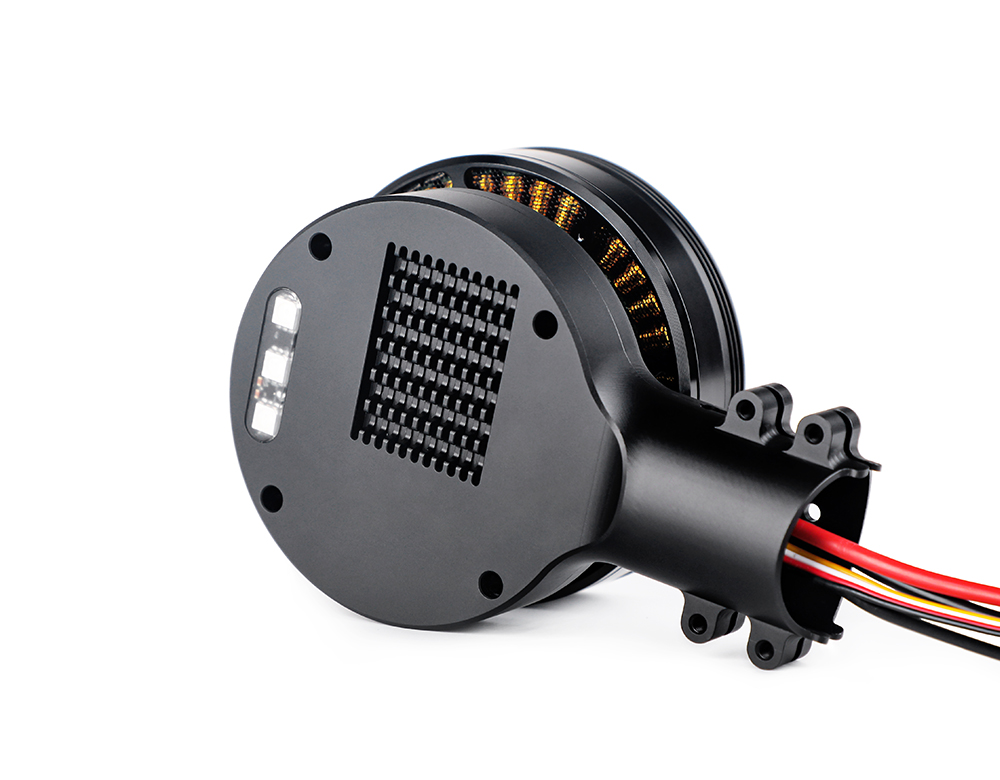

T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller

T-Motor
Preview: T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller Preview: T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller Preview: T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller Preview: T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller Preview: T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller
T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller
T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller
T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller
T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller
T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller

€592.90 * €609.90 * (2.79% Saved)

Prices incl. VAT plus shipping costs

 Free Shiping within Germany

Item is backordered – Lead time approx. 2-4 weeks.

  • Order number: PM-7359
  • Hersteller: T-Motor
  • Artikelname: XU8-X-KV100-12S-MF2815
  • EAN: 4250902367114
Description Evaluations 0
Description
Specification Model XU8-X KV100 Lead Cable Length 600mm Dimension 134.6*87.1*70.5mm... more
Close menu
Product information "T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller"

Specification

ModelXU8-X KV100Lead Cable Length600mm
Dimension134.6*87.1*70.5mmArm Set Weight(Incl. Cable)485g
Configuration36N42PShaft Diameter8mm
Idle Current (24V)0.9ARated Voltage (Lipo)12S
Internal Resistance170±5mΩIngress ProtectionLevelIP45
Peak Current (180s)29.3AESCRecommendationALPHA 60 12S V1.2
Max. Power (180s)1400WPropellerRecommendationMF2815

Test Data

TypeVoltage
(V)		PropellerThrottleThrust
(g)		Torque
(N*m)		Current
(A)		RPMPower
(W)		Efficiency
(g/W)		Operating
Temperature
(°C)
XU8-X KV10012S(48V)T-MOTOR
G27*8.8" CF		40%19760.673.10191914913.28/
42%21300.713.40197216313.05
44%24300.824.10210819712.35
46%25040.854.40215421111.86
48%26600.894.80222123011.55
50%28940.975.40230225911.17
52%30901.025.90238128310.91
54%32811.086.50243931210.52
56%34391.116.90250233110.38
58%35931.157.40257335510.12
60%37741.197.9026353799.95
62%40261.298.8027204229.53
64%42201.329.3027734469.45
66%43651.359.8028234709.28
68%45321.4110.5028745048.99
70%46731.4311.0029385288.85
75%51291.5512.7030646108.41
80%56351.714.8032147107.93
90%67151.9719.2034949227.29
100%81642.4226.00377712486.54
XU8-X KV10012S(48V)T-MOTOR
G28*9.2" CF		40%22430.773.50189616813.35/
42%24010.823.90196418712.83
44%25550.854.20202020212.67
46%28810.995.10214424511.77
48%30081.015.40219025911.6
50%32311.086.00226828811.22
52%33701.166.70233932210.48
54%36241.217.20241534610.49
56%38031.257.70246237010.29
58%40331.338.5025404089.88
60%42011.358.9025814279.83
62%43531.49.5026474569.55
64%45931.4910.4026944999.2
66%47911.5311.0027555289.07
68%49881.5811.7028125628.88
70%51531.612.2028585868.8
75%56961.7614.3030026868.3
80%61711.8716.2031227787.94
90%73292.2121.40337910277.13
100%87162.7329.30370914066.2
Note: Motor temperature is motor surface temperature @100% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Product Details









Dimensional Drawing

Drawing

Related links to "T-Motor XU8-X Arm Set Integrated Propulsion KV100 Alpha 60A 12S + MF2815 Propeller"

Hersteller gemäß (GPSR (EU)2023/988):

T-Motor, 24F, Bd.B, Twintowers, No. 3399 Ziyang Ave., Nanchang, Jiangxi, P.R. China. 330096 https://uav-en.tmotor.com/

Inverkehrbringer:

Premium-Modellbau Würch GmbH, Geschäftsführer: Steffen Würch, Torenstrasse 9, 88709 Meersburg, Deutschland, Tel: 07046 38795100, www.premium-modellbau.de
