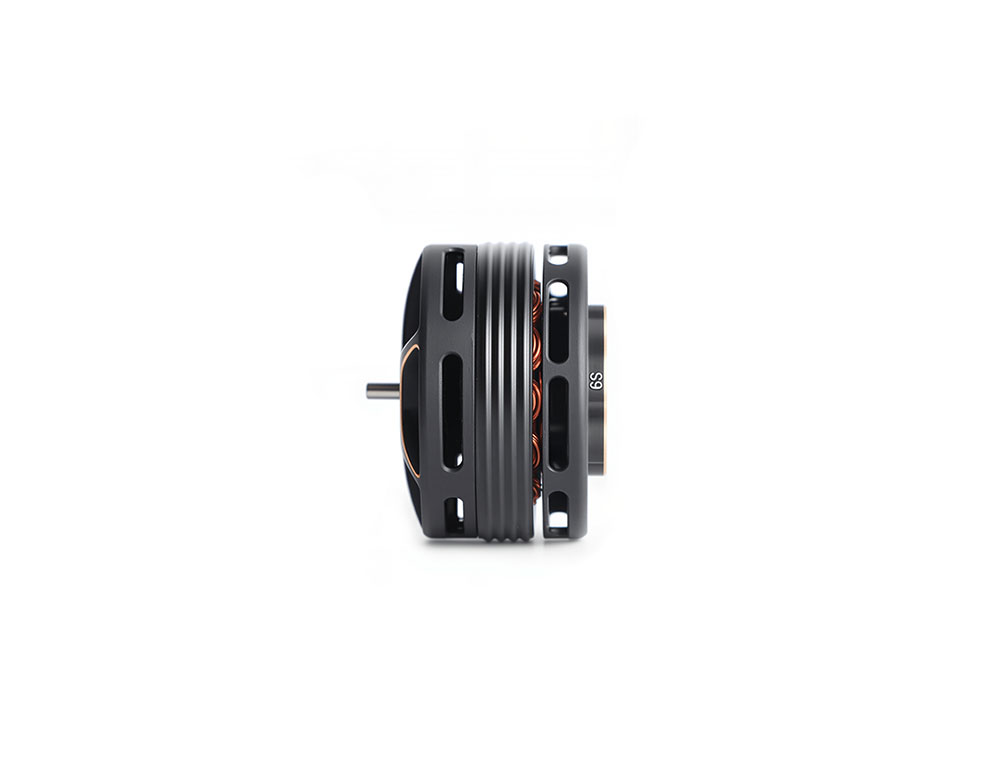

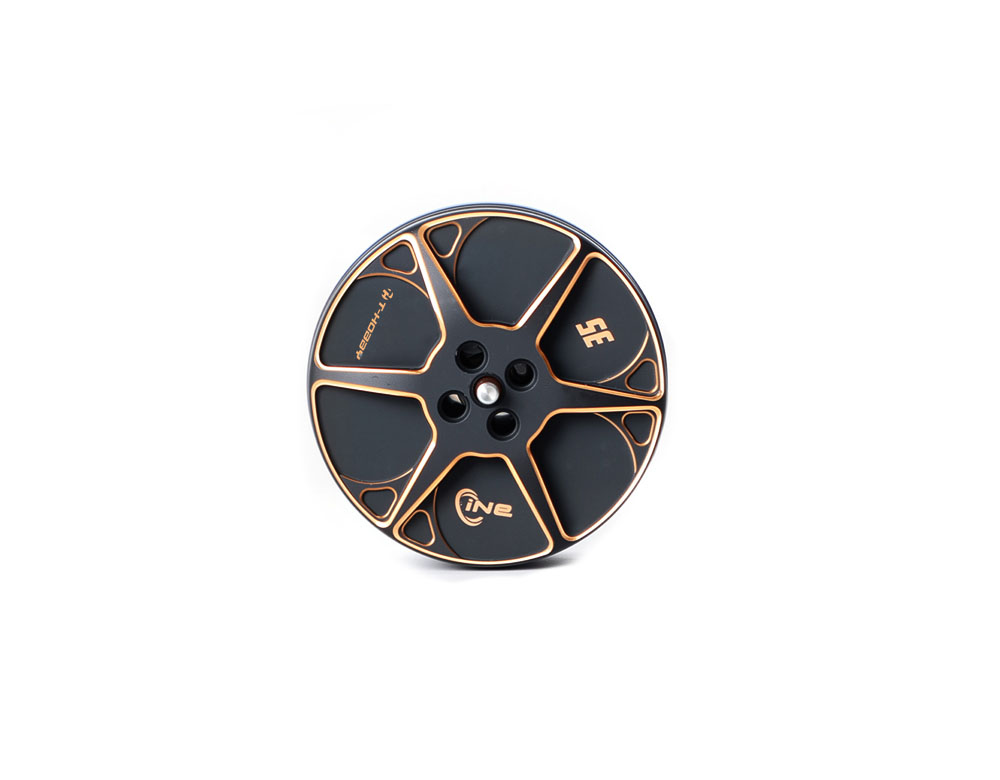

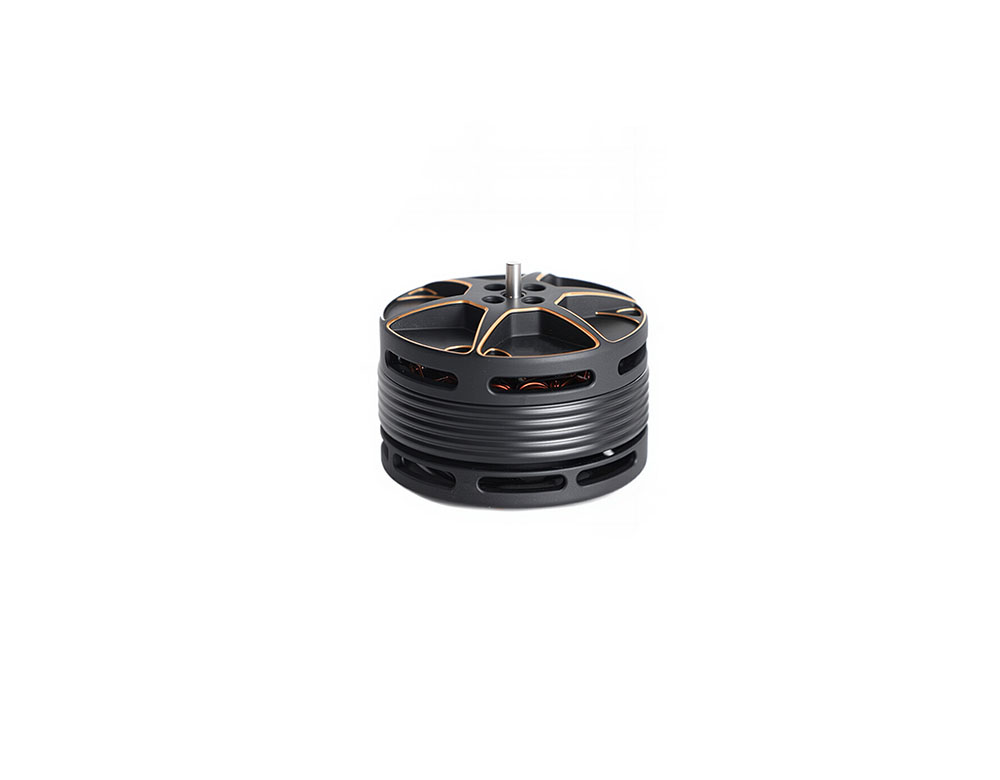

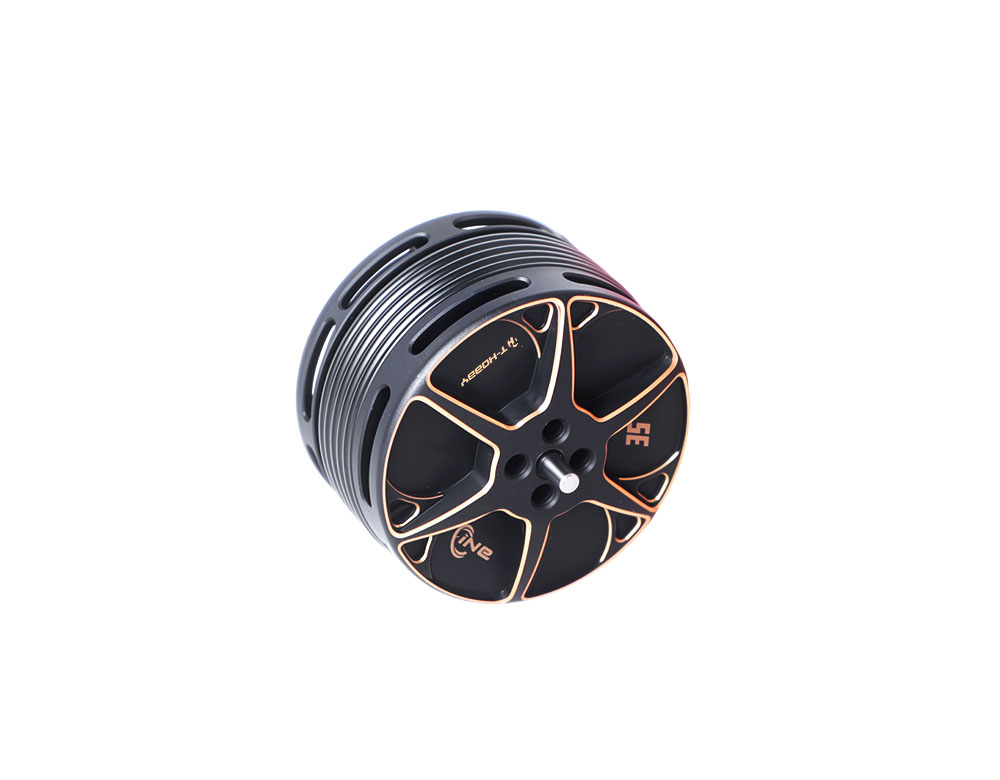

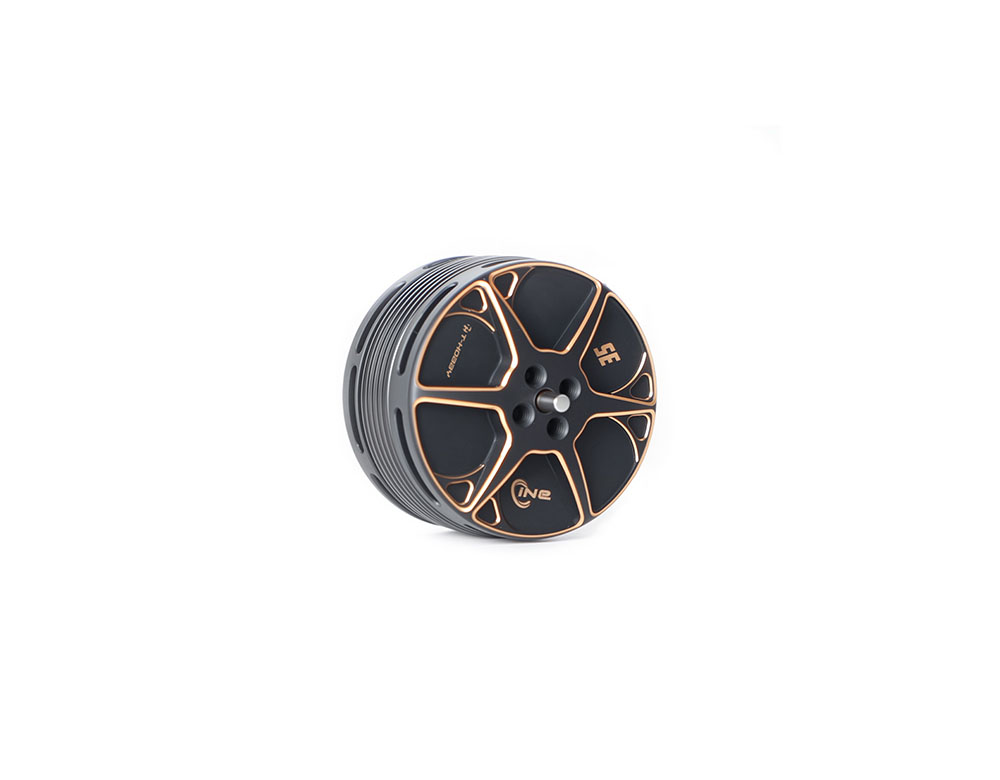

T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g

T-Motor
Preview: T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g Preview: T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g Preview: T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g Preview: T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g Preview: T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g Preview: T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g
T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g
T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g
T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g
T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g
T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g
T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g

€45.90 * €47.90 * (4.18% Saved)

Prices incl. VAT plus shipping costs

Item is backordered – Lead time approx. 2-4 weeks.

  • Order number: PM-7237
  • Hersteller: T-Motor
  • Artikelname: Cine35
  • EAN: 4250902365905
Description Evaluations 0
Description
COMPREHENSIVE PROTECTION FOR SECURE FLIGHT The integrated protective design... more
Close menu
Product information "T-Motor Cine35 FPV Cinewhoop Brushless Motor 6S 3.5" 19,6g"
cine

COMPREHENSIVE PROTECTION FOR SECURE FLIGHT

The integrated protective design effectively prevents sand, gravel, and dust from entering the motor during filming and take off/landing operations. The iron core undergoes electrophoretic coating treatment and has passed 72-hour salt spray test certification, ensuring reliable performance in moisture, dusty, and corrosive environments.

Corrosion resistant

CORROSION
RESISTANT

Sand resistant

SAND
RESISTANT

Dust resistant

DUST
RESISTANT

All-environment reliability

ALL-ENVIRONMENT
RELIABILITY

MASTERY OF COMPACT SPACE

With high responsiveness enabling flexible control in confined spaces and dense obstacle environments, it easily enhances high-speed close-range shots.It maintains strong output and efficiency even when carrying payloads up to 60g (like naked GOPRO), achieving a single-flight duration of 3-6 minutes.

cine

MULTI-FRAME COMPATIBLE BASE DESIGN

The non-protruding shaft screw configuration ensures compatibility with various frame types, allowing the motor to demonstrate exceptional performance across different application scenarios and frame configurations.

RECOMMENDED

CINE35

F7 45A AIO

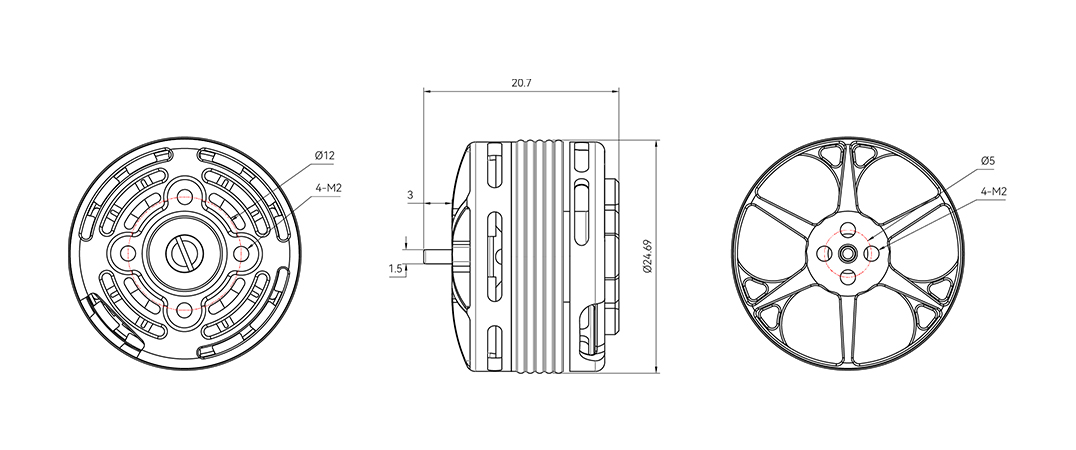

Technical Drawing


Specification Export to Excel
Type Cine35 Motor Dimension Φ24.69*20.7mm
Magnet Nickel platedarc magnet Coil insulation test 200V withstand voltage test
Waterproof anddustproof class IP45 Configuration 12N14P
Dynamic balancerequirements standards ≤5mg Bearings Imported 683ZZ
Shaft Diameter 1.5mm Lead 24AWG*150mm
Screw Diameter Φ12-M2-4 Prop Adapter Shaft Thread Φ5-M2-4
Packing Size 65*65*55mm Packing Weight 30g (1pcs)/135g (4pcs)
Tech Specs
Recommended Voltage 6S Idle Current(10V) 0.8A
Max Power(1s) 316W Internal Resistance 140mΩ
Rated Voltage (Lipo) 24V Peak Current(1s) 18A
Max Thrust 858g Weight (incl.cable) 19.6g
Recommended
Motor Cine35 6S Frame Type Cinewhoop X4
Prop HQ T90-3 Lipo Cells 6S
ESC F7 45A AIO 6S Recommended
takeoff weight range		 Within 800g
FC F7 45A AIO 7S Max Takeoff Weight 1200g
Test Data: 1、1350mah 6s battery (216g), load weight 160g, AUW 680g, flight time 10 minutes.
2、1350mah 6s battery (216g), without payload, AUW 520g, flight time 15 minutes.
3、3000mah 6s battery (330g), without payload, AUW 634g, flight time 28 minutes.
Note: Recommend BL32 ESC settings: Startup power: 50%, Timing: AUTO, PWM frequency: 32-BYRPM,
Demag compensation: low, for best efficiency and flight time experience (improper settings may cause desync)
Test Data Export to Excel
Type Propeller Voltage
(V)		 Throttle
(%)		 Current
(A)		 RPM Thrust
(g)		 Power
(W)		 Efficiency
(g/W)		 Torque
(N*m)		 Operating
Temperature
(℃)
Cine35
6s		 HQ
T90-3		 24.04 10% 0.12 5029 15 3 5.33 0.00
24.04 20% 0.50 9851 60 12 5.01 0.01 93
(Ambient temperature:
25℃)
24.03 30% 1.22 14051 126 29 4.30 0.01
24.01 40% 2.46 18111 215 59 3.65 0.02
23.98 50% 4.28 21895 320 103 3.11 0.03
23.95 60% 6.64 25472 432 159 2.72 0.04
23.90 70% 9.81 28802 554 235 2.36 0.06
23.86 80% 13.11 31503 665 313 2.13 0.07
23.80 90% 16.97 33848 763 404 1.89 0.08
23.73 100% 21.38 36002 868 507 1.71 0.09
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine35
6s		 HQ
T90-3
(With Oddity frame)		 24.02 10% 0.11 5169 15 3 5.42 0.00
24.01 20% 0.48 10016 61 12 5.28 0.01 87
(Ambient temperature:
25℃)
24.00 30% 1.19 14280 131 28 4.61 0.01
23.97 40% 2.34 18379 219 56 3.90 0.02
23.92 50% 4.04 22221 325 97 3.37 0.03
23.87 60% 6.18 25819 436 148 2.95 0.04
23.79 70% 9.02 29104 558 215 2.60 0.05
23.71 80% 11.90 31839 668 282 2.37 0.06
23.62 90% 15.41 34161 768 364 2.11 0.07
23.53 100% 19.05 36317 867 448 1.94 0.08
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine35
6s		 GF
D90-3		 24.04 10% 0.14 4874 14 3 4.40 0.00
24.04 20% 0.53 9579 60 13 4.74 0.01 95
(Ambient temperature:
25℃)
24.02 30% 1.27 13997 126 31 4.14 0.01
24.01 40% 2.48 18114 213 60 3.57 0.02
23.98 50% 4.21 21988 315 101 3.12 0.03
23.95 60% 6.49 25697 425 155 2.74 0.04
23.91 70% 9.41 29206 546 225 2.43 0.05
23.87 80% 12.39 32197 652 296 2.21 0.06
23.82 90% 15.96 34924 756 380 1.99 0.07
23.75 100% 20.03 37527 863 476 1.81 0.08
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine35
6s		 GF
D90-3
(With Oddity frame)		 24.02 10% 0.11 5172 14 3 5.23 0.00
24.01 20% 0.48 10028 62 11 5.41 0.01 89
(Ambient temperature:
25℃)
24.00 30% 1.15 14347 129 28 4.68 0.01
23.97 40% 2.23 18534 218 54 4.07 0.02
23.93 50% 3.77 22529 320 90 3.55 0.03
23.88 60% 5.72 26394 433 137 3.17 0.04
23.82 70% 8.15 30096 555 194 2.86 0.05
23.75 80% 10.59 33205 663 252 2.63 0.05
23.67 90% 13.52 36289 775 320 2.42 0.06
23.59 100% 16.69 39162 883 394 2.24 0.07
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine35
6S		 GF
DT90-5		 24.04 10% 0.12 4732 18 3 6.08 0.00
24.03 20% 0.56 9216 68 13 5.08 0.01 152
(Ambient temperature:
25℃)
24.02 30% 1.50 13395 148 36 4.09 0.02
24.00 40% 3.03 17247 243 73 3.35 0.03
23.96 50% 5.28 20735 355 127 2.80 0.04
23.92 60% 8.20 23731 474 196 2.42 0.06
23.87 70% 11.87 26572 592 283 2.09 0.07
23.82 80% 15.88 28763 694 378 1.84 0.08
23.76 90% 19.76 30529 776 470 1.65 0.09
23.69 100% 24.32 31728 843 576 1.46 0.09
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
Cine35
6s		 GF
DT90-5
(With Oddity frame)		 24.02 10% 0.12 4908 18 3 5.98 0.00
24.01 20% 0.53 9468 67 13 5.33 0.01 148
(Ambient temperature:
25℃)
23.99 30% 1.39 13752 147 33 4.41 0.02
23.95 40% 2.78 17653 244 67 3.66 0.03
23.90 50% 4.77 21231 355 114 3.12 0.04
23.84 60% 7.28 24502 472 173 2.72 0.05
23.76 70% 10.32 27472 587 245 2.39 0.06
23.67 80% 13.56 29922 687 321 2.14 0.07
23.58 90% 17.00 31940 780 401 1.95 0.08
23.48 100% 20.89 33454 851 490 1.74 0.08
Note: The motor temperature refers to the casing temperature after running at 80% throttle for 10 seconds.
(The above data is obtained by T-HOBBY's independent platform test and is only for reference. The final interpretation right belongs to T-HOBBY.)
