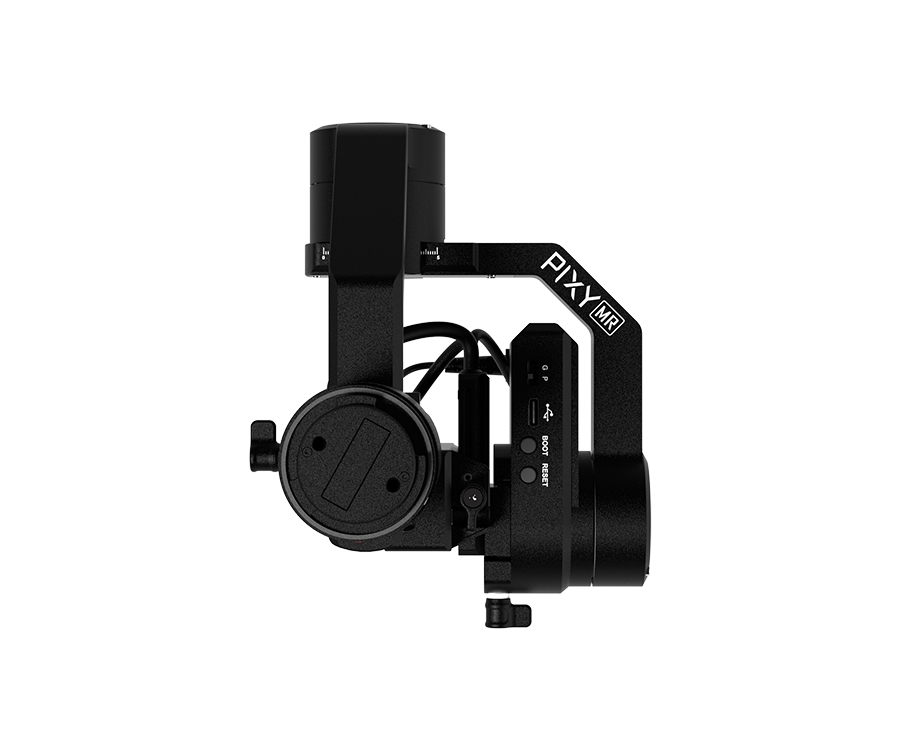

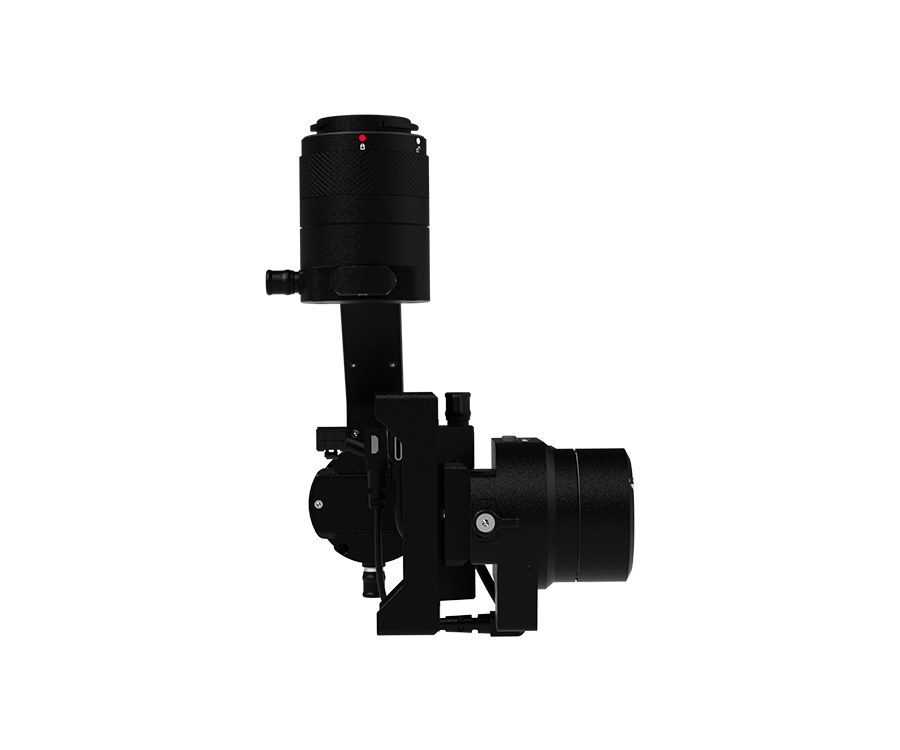

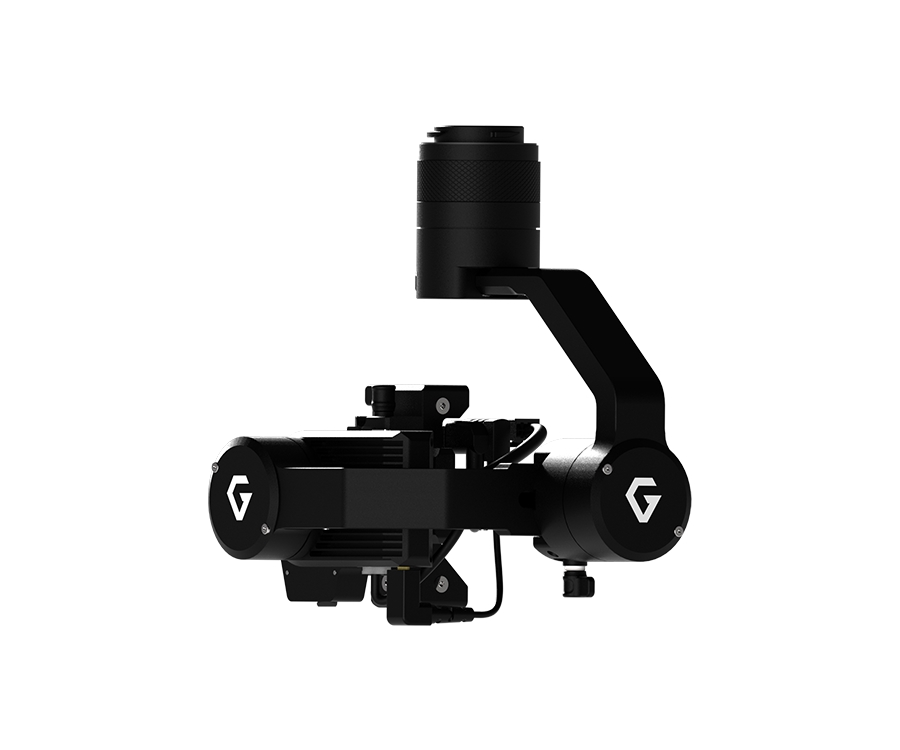

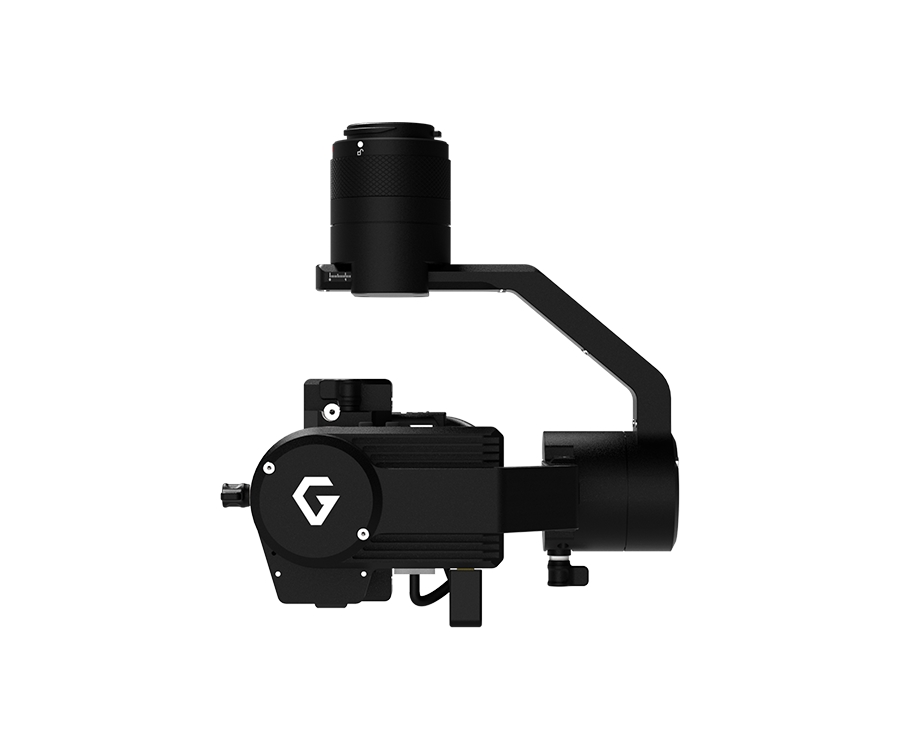

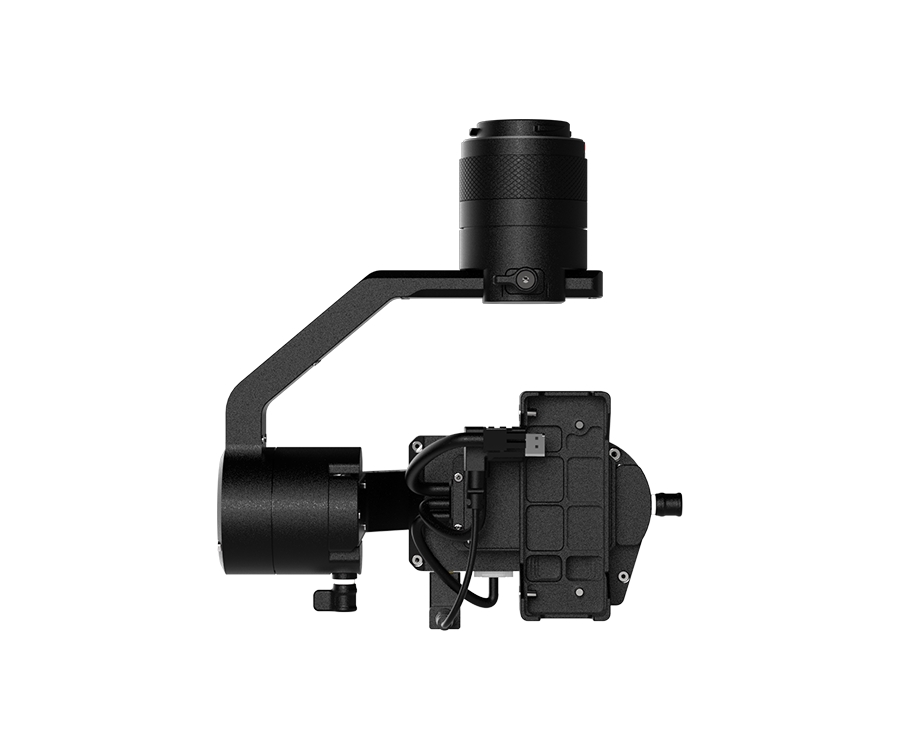

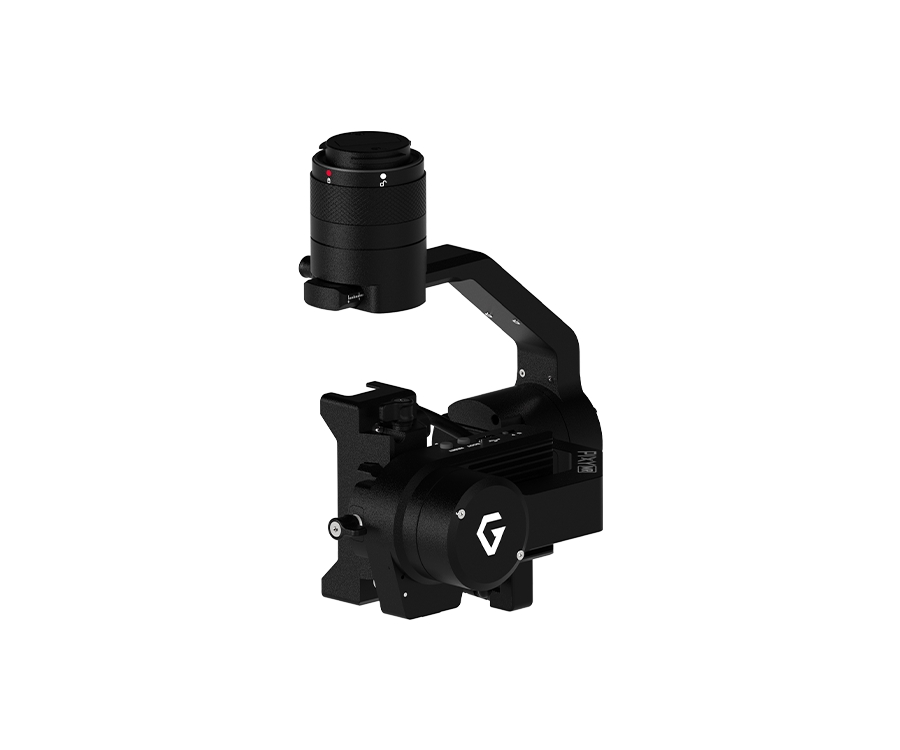

Pixy MR is perfectly built for Sony ILX - LR1, and compatible with M300/M350 drone platforms, offering quick and straightforward integration via DJI Skyport. Pixy MR is optimized in size, weight yet powerful (SWaP), recommended by UAV experts in multiple applications.
Gremsy Pixy MR für Sony ILX-LR1 und DJI M300 / M350
€3,247.90 *
€3,339.90 * (2.75% Saved)
Prices incl. VAT plus shipping costs
Free Shiping within Germany
Item is backordered – Lead time approx. 2-4 weeks.
- Order number: PM-7119
- Hersteller: Gremsy
- Artikelname: 20G501-000
- EAN: 4250902364755
Plug-and-Play DJI default damping supports multiple Sony ILX-LR1 lenses
Pixy MR is... more
Product information "Gremsy Pixy MR für Sony ILX-LR1 und DJI M300 / M350"
Plug-and-Play
DJI default damping supports multiple Sony ILX-LR1 lenses
Superior Inspection Imaging
High resolution, low noise and wide dynamic range images enable fine-detail reveal such as small scratches and cracks during inspection, investigation, surveying and mapping
- Accurate and broad subject recognition powered by the AI Processing Unit
- Backside-illuminated (BSI) Exmor R sensor enables
- Up to 8x more powerful BIONZ XR image processor
- Pixel Pitch 3.8μm
Accurate Mapping Solution
In a single flight,with D-RTK 2, the payload offers:
- Ground resolution: 2.42 mm/pix (1)
- Flying altitude: 21.3 m
- Coverage area: 3.44e+03 m2
Purpose Built For Sony ILX-LR1
The Pixy MR offers full camera functionality for Sony ILX-LR1, the most compact full-frame image sensor, with a various lenses compatibility: SEL28F20, SEL35F28Z, SEL55F18Z and the prime lens including SEL24F28G, SEL40F25G, SEL50F25G.
Optimized Solution for DJI M300/M350 RTK & Sony ILX-LR1
DJI M300/M350 RTK Support
Pixy MR is a ready-for-flight plug-and-play DJI M300/M350 RTK, connects directly to the Sony ILX-LR1 utilizing the DJI M300/M350's default damping in the lens ranges (2). The solution offers all the available functions on DJI Pilot.
- Waypoint
- Mapping
- Oblique
- Linear Flight
Full Camera and Gimbal Control
- Remotely adjust camera exposure, shutter, ISO, Aperture, and all camera settings.
- Use the DJI Pilot App to trigger the camera and record videos.
- Livestream on DJI RC with HDMI /USB output.
- Support Lenses: SEL28F20, SEL35F28Z, SEL55F18Z, SEL24F28G, SEL40F25G, SEL50F25G.
Meet The Industrial Standard Mapping Accuracy - 2D Orthomosaic Mission
2 mintutes
Full frame 61MP
Lens 28mm
54 pictures
GSD
0.93cm/px
0.93cm/px
GSD CACULATION REFERENCES(3)
| Drone DJI M300RTK | |
| Payload Pixy MR | |
| Area: 8000m2 | |
| Lens: mm | Damping |
| SEL24F28G | DJI Default Damping |
| SEL28F20 | DJI Default Damping |
| SEL35F28Z | DJI Default Damping |
| SEL40F25G | DJI Default Damping |
| SEL50F25G | DJI Default Damping |
| SEL55F18Z | Gremsy Advanced Damping |
Superior Imaging with 61 MP Full-Frame Camera
- (1) With a 70% front overlap, 80% side overlap
- (2) SEL28F20, SEL35F28Z, SEL24F28G, SEL40F25G, SEL50F25G.
Except for the SEL55F18Z lens, which should be changed with Gremsy Advanced Damping for optimal performance. - (3) Caculating by DJI Pilot App with different results during real flights.
Lieferumfang und Technische Daten:
| Pixy MR | 20G501-000 | x 1 |
| Skyport Cap | 25-0008Z-9-008 | x 1 |
| Right Angle Micro HDMI To Angle Micro HDMI Cable | 10T-04-010-0 | x 1 |
| USB-C Cable | EWC4USBC95 | x 1 |
| M3x6 Hexagon screw - DIN 7991 | 261-7991-1-023 | x 1 |
| Allen Key 2.0mm | 25-0010Z-2-003 | x 1 |
| Product Name | Pixy MR |
| System Type | 3-Axis Camera Stabilizer |
| Supported Drone Type | DJI M300/M350 RTK |
| Dimension (DxWxH) | 157mm x 108mm x 167mm |
| Weight | 520g/1.15lbs |
| Construction | Alluminum |
| Quick Release Type | Skyport V2.0 |
| Operation Power | 13.7V under skyport |
| Connection | DJI Skyport V2 USB 2.0 UART |
| Gimbal Mode | Lock (Free mode) Follow Mapping (Nadir) |
| Pan Range | ± 160° |
| Roll Range | ± 25° |
| Tilt Range | +135° to -45° |
"
