Product information "Emlid Emlid Reach RS3 Survey Kit Multi-band RTK GNSS Empfänger Set"

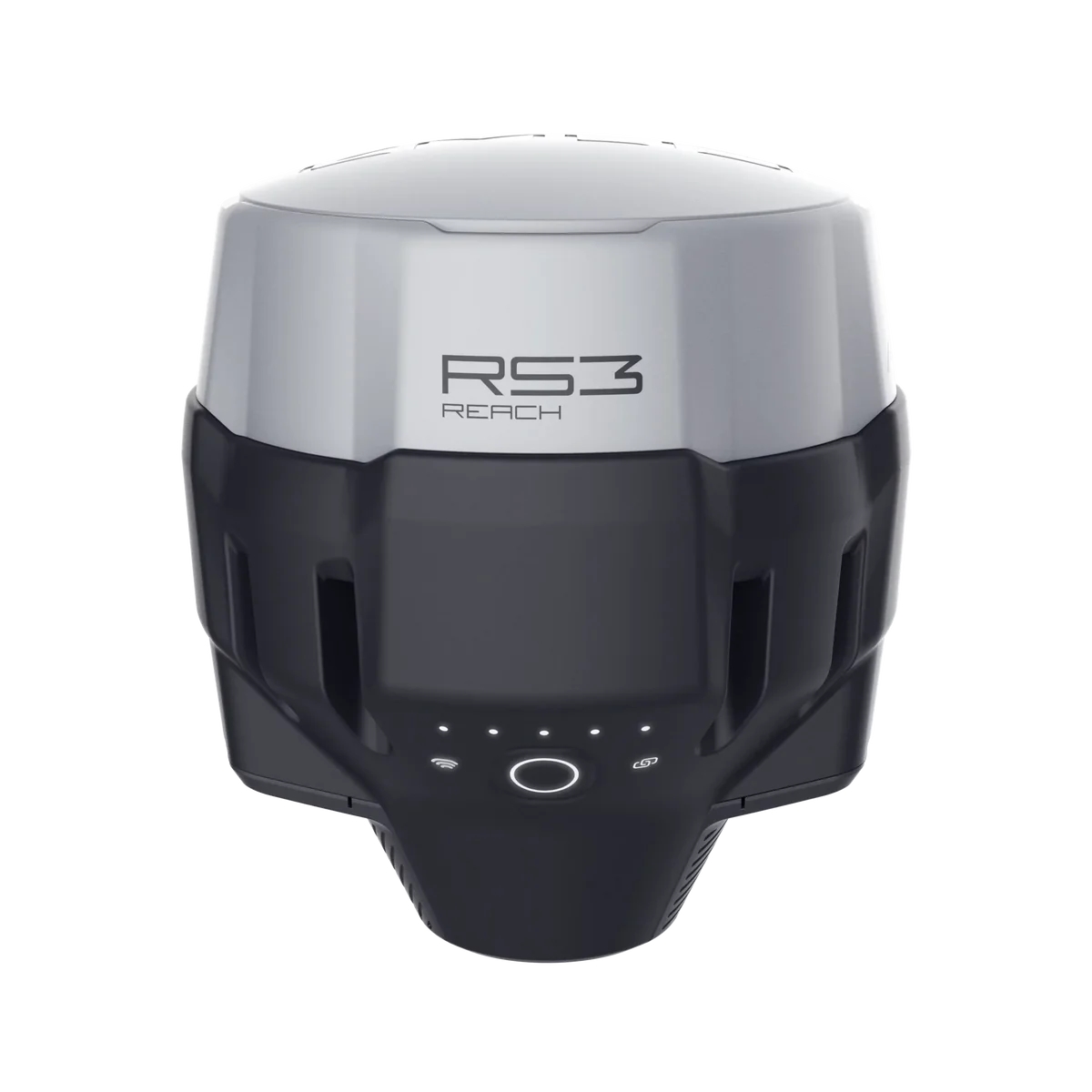

Two Reach RS3 receivers to use as base and rover

Survey grade precision with tilt compensation. Comes with a mobile app.

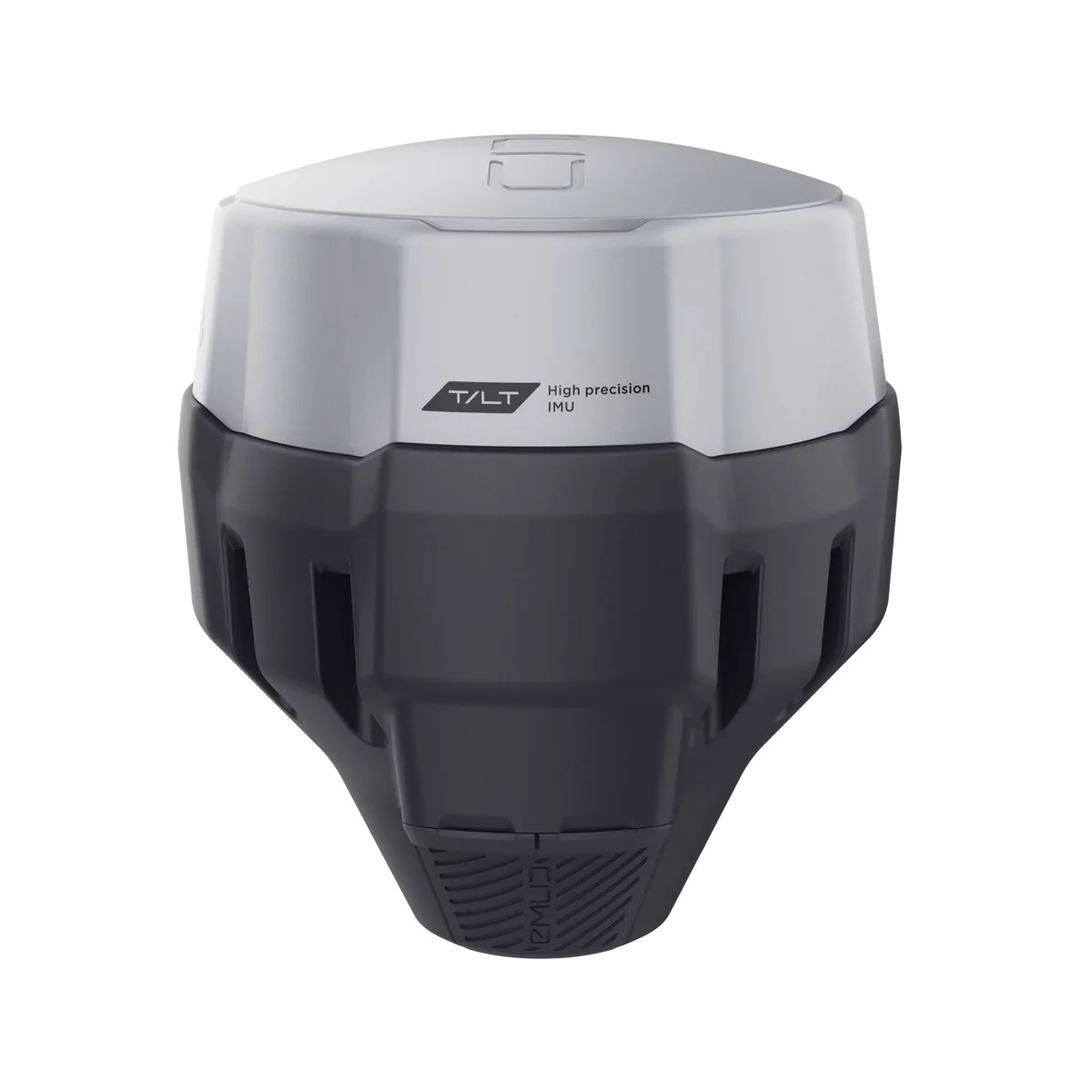

IMU tilt compensation

6DOF, RTK + 2 mm + 0.3 mm/°
Calibration-free and immune to magnetic disturbances

GNSS

GPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I,
Galileo E1-B/C, E5b

18 hrs with tilt compensation

Li-Ion battery, USB Type-C charging

LTE and Wi-Fi

To connect the device to the internet

Dual-band radio

868/915 MHz LoRa to receive and transmit corrections
450 MHz UHF to receive corrections from bases transmitting TRIMTALK 450S (trademark of Trimble Inc.)

NTRIP and RTCM3

Supported protocols to send and receive corrections

Explore all Reach RS3 features and user reviews

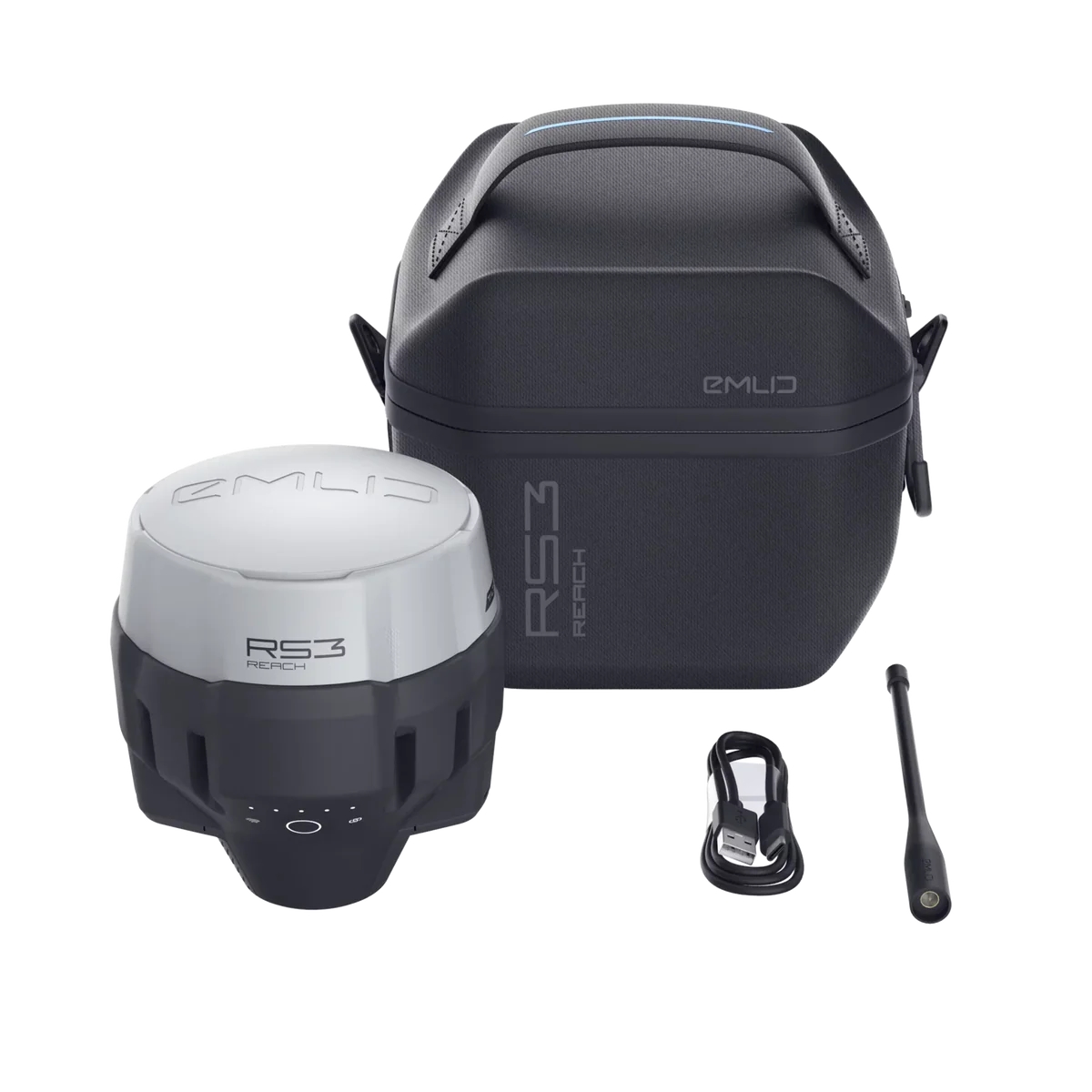

Package includes

– 2x Reach RS3
– 2x Carrying case with a strap
– 2x Radio antenna
– 2x USB Type-C cable

Mechanical

Dimensions: 126 x 126 x 142 mm
Weight: 950 g
Operating tº: -20 to +65 ºC
Ingress protection: IP67
Electrical

Autonomy: 18 hrs as RTK rover with tilt, 22 hrs of logging
Battery: Li-Ion 5200 mAh, 7.2 V, 37.44 Wh
External power input: 7.2 V
Charging: USB Type-C 5 V, 3 A
Certification: FCC, CE
Positioning

Static: H: 4 mm + 0.5 ppm | V: 8 mm + 1 ppm
PPK: H: 5 mm + 0.5 ppm | V: 10 mm + 1 ppm
RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm
Tilt compensation: RTK + 2 mm + 0.3 mm/°
Convergence time: ~5 s typically
Connectivity

LoRa radio
Frequency range: 868/915 MHz
Power: 0.1 W
Distance: Up to 8 km
UHF radio—receive only*
Frequency range: 410 - 470 MHz
Protocols: TRIMTALK 450S**
Modulation type: GMSK
LTE modem
Regions: Global
Bands: FDD-LTE: 1,2,3,4,5,7, 8, 12, 13, 18, 19, 20, 26, 28, 66 TD-LTE: 38,40,41
UMTS (WCDMA/FDD): 1,3,2,4,5,6, 8,19 Quad-band, 850/1900, 900/1800 MHz
SIM card: Nano-SIM
Wi-Fi: 802.11 b/g/n
Bluetooth: 4.0/2.1 EDR

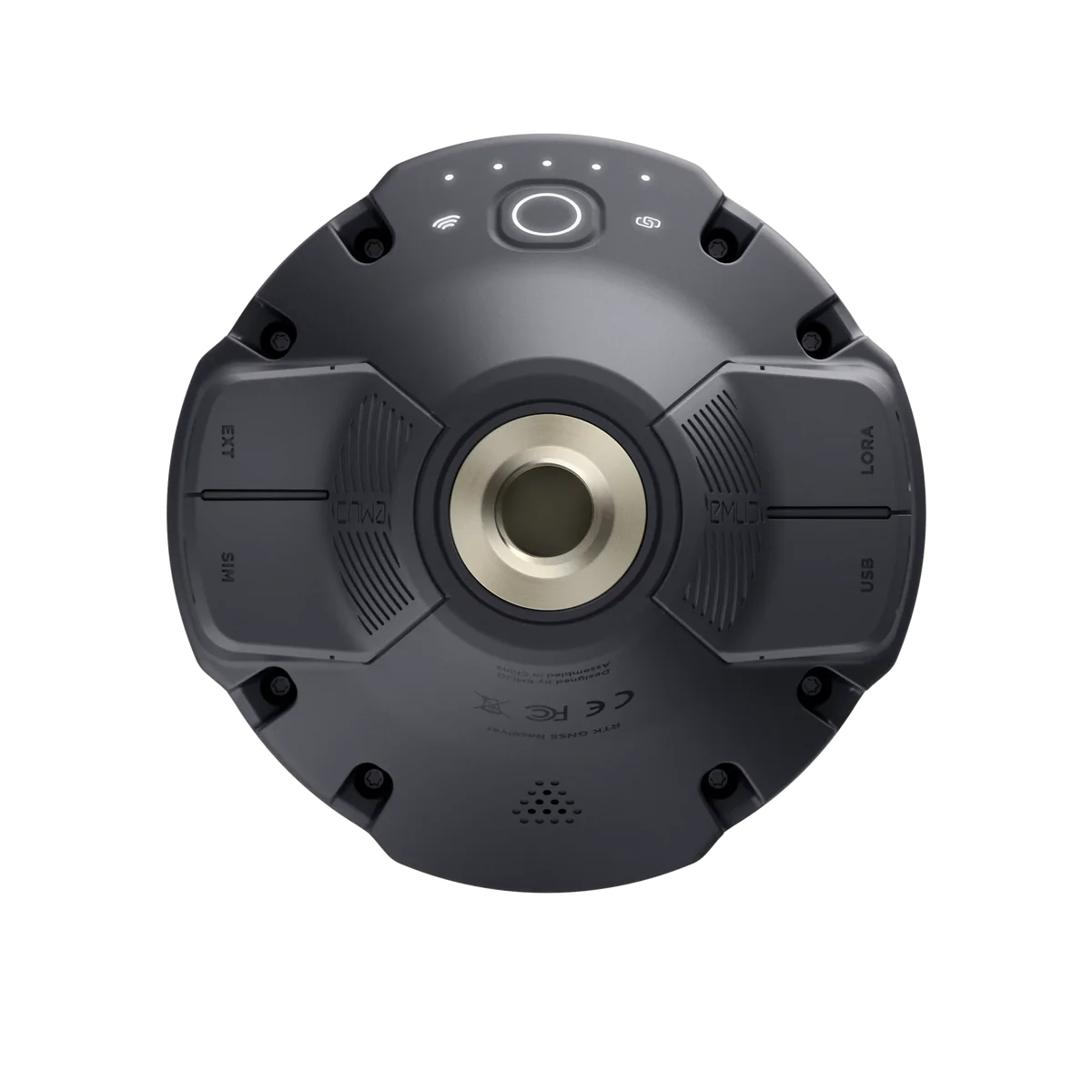

Ports: RS-232, USB Type-C
*Requires a 410-470 MHz antenna, sold separately.
**TRIMTALK is a trademark of Trimble Inc.
Data protocols

Corrections: NTRIP, RTCM3
Position output: NMEA, LLH/XYZ
Data logging: RINEX, NMEA, LLH/XYZ, UBX
Internal storage: 16 GB
GNSS

Signal tracked: GPS/QZSS L1C/A, L2C GLONASS L1OF, L2OF BeiDou B1I, B2I Galileo E1-B/C, E5b
Number of channels: 184
Update rates: up to 10 Hz
IMU: 6DOF
