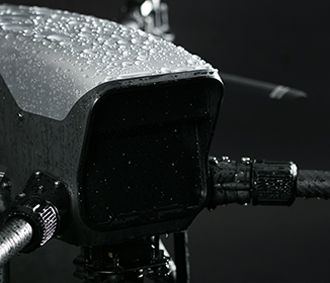

EFT X950 Industrial Drone Platform Frame Kit 950mm IP54 Foldable
Prices incl. VAT plus shipping costs
Free Shiping within Germany
In Stock
Delivery time appr. 1-3 workdays within Germany
- Order number: PM-7377
- Hersteller: EFT
- Artikelname: X950-Frame
- EAN: 4250902367299
Es handelt sich um das reine Framekit (ohne Motoren, ohne ESC, ohne Propeller, ohne sonstige Elektronik).
Montierte Propeller oder komplette Antriebseinheiten zeigen die PNP Version zu Demonstrationszwecken.
Industrial Drone Platform — DIY Your Drone
New lightweight industrial drone platform. Streamlined structure, ingenious design. Spacious flight control bay, supporting installation of various FC systems. Multiple payload mounts, flexible expansion. DIY your drone for diverse industrial applications.
Minimalist Industrial Design
Streamlined minimalist design reduces air resistance for smoother flights. Quick-detach spiral arms and foldable structure for easy portability.
Flexible Autopilot Installation
Spacious flight control bay fits multiple controllers and airborne computers. Removable front cover enables easy add-on of LiDAR, cameras, and more.
Large-Capacity Battery Compartment
Supports various battery types with dual quick-lock arm knobs. Multi-duct cooling for efficient heat dissipation and long-term stable operation.
Multiple Payload Mounting Zones
Multiple mounting zones allow easy expansion with gimbals, spotlights, speakers. Ready for power inspections, water monitoring, emergency response.
Application Scenarios
Product Gallery
X950 Platform Specification
| Wheelbase | 950mm |
| Unfolded Size | 1253*1258*459mm |
| Folded Size | 407*421*459mm |
| Recommended Propeller Diameter | 23inch |
| PNP Platform Weight | 3.9kg |
| Max Takeoff Weight | 10kg |
| Battery Comp. Size | 210*130*80mm |
| Recommended Battery | 17000/22000mAh (12S) |
| IP Rating | IP54 |
Dimensional Drawing
